OMB-DAQ-TC-RACK
Data Acquisition Unit, 32 Channels, 3 SPS, 15 V, 26 Hz, 43.18 mm

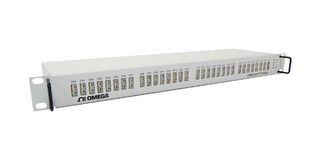

Image is for illustrative purposes only. Please refer to product description.
Available to Order
Manufacturer Standard Lead Time: 55 week(s)
| Quantity | Price (Incl GST) |
|---|---|
| 1+ | $5,705.920 ($6,561.808) |
Price for:Each
Minimum: 1
Multiple: 1
$5,705.92 ($6,561.81 inc GST)
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerOMEGA
Manufacturer Part NoOMB-DAQ-TC-RACK
Order Code3866262
Technical Datasheet
No. of Channels32Channels
Sampling Rate3SPS
Input Voltage Max15V
Bandwidth26Hz
External Height43.18mm
External Width128.6mm
External Depth482.6mm
Product Overview
- 32ch USB/IP based thermocouple input data acquisition system
- USB and 10/100 Ethernet interface and 32 differential thermocouple inputs
- Thermocouple channel-to-host isolation
- Inputs connect easily to built-in miniature thermocouple jacks
- 24bit resolution, 3S/s per channel maximum sample rate
- Per channel out-of-range alarm configuration and Cold-Junction Compensation (CJC) sensor per channel
- Open thermocouple detection
- 8 digital inputs and 32 digital outputs/alarms
- Isolated from thermocouple inputs and host
- Power adaptor included with OMB-DAQ-TC-RACK
Contents
Data acquisition system, 1m (3.2') CAT-6 Ethernet cable, 1.8m (6') USB cable, TracerDAQ software, Operator’s manual on CD.
Technical Specifications
No. of Channels
32Channels
Input Voltage Max
15V
External Height
43.18mm
External Depth
482.6mm
Sampling Rate
3SPS
Bandwidth
26Hz
External Width
128.6mm
Technical Docs (1)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Tariff No:84714900
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:No
RoHS Phthalates Compliant:No
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):1.72365
