OSAT-801-MT-C-10
Infrared Temperature Sensor, 4mA to 20mA, 240ms, 24 VDC, M20 x 1.5mm Pitch

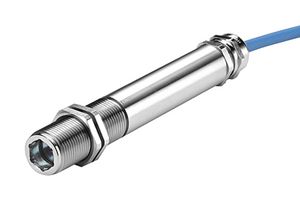

Image is for illustrative purposes only. Please refer to product description.
ManufacturerOMEGA
Manufacturer Part NoOSAT-801-MT-C-10
Order Code4481026
Product RangeOSAT Series
Technical Datasheet
Available to Order
Manufacturer Standard Lead Time: 14 week(s)
Notify me when back in stock
Product Information
ManufacturerOMEGA
Manufacturer Part NoOSAT-801-MT-C-10
Order Code4481026
Product RangeOSAT Series
Technical Datasheet
Supply Voltage24VDC
Sensing Temperature Min0°C
Sensing Temperature Max250°C
Response Time240ms
Operating Temperature Min0°C
Operating Temperature Max70°C
Analogue Outputs4mA to 20mA
Digital Outputs-
Mounting ThreadM20 x 1.5mm Pitch
Field of View (FOV)-
Emissivity0.2 to 1 (Adjustable)
Product RangeOSAT Series
SVHCNo SVHC (27-Jun-2024)
Product Overview
OSAT-801-MT-C-10 is an intrinsically safe infrared temperature sensor. It is suitable for hazardous areas, zone 0, 1 and 2 (gas), and zone 20, 21 and 22 (dust), with a suitable intrinsically safe isolator.
- Two-wire, 4 to 20mA output
- Fast response time and high stability
- 316 stainless steel housing-ideal for offshore applications
- IP65 sealed
- 5mm diameter at 100mm (1⁄5" at 4") field of view
- 0 to 250°C temperature range
- 10m cable length
- Supply voltage is 12 to 24VDC, ±5%
Technical Specifications
Supply Voltage
24VDC
Sensing Temperature Max
250°C
Operating Temperature Min
0°C
Analogue Outputs
4mA to 20mA
Mounting Thread
M20 x 1.5mm Pitch
Emissivity
0.2 to 1 (Adjustable)
SVHC
No SVHC (27-Jun-2024)
Sensing Temperature Min
0°C
Response Time
240ms
Operating Temperature Max
70°C
Digital Outputs
-
Field of View (FOV)
-
Product Range
OSAT Series
Technical Docs (1)
Legislation and Environmental
Tariff No:90259000
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (27-Jun-2024)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.000454
