RTD-805.

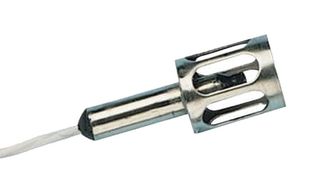

RTD SENSOR, CLASS A DIN PLATINUM, 100R
Image is for illustrative purposes only. Please refer to product description.
1,219 total stock globally
Need more?
1219 Delivery in 10-14 Business Days(US stock)
| Quantity | Price (Incl GST) |
|---|---|
| 1+ | $336.130 ($386.5495) |
Price for:Each
Minimum: 1
Multiple: 1
$336.13 ($386.55 inc GST)
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerOMEGA
Manufacturer Part NoRTD-805.
Order Code2851740
Technical Datasheet
Sensing Temperature Min-50°C
Sensing Temperature Max230°C
Resistance100ohm
Measured Temperature Min-50°C
Measured Temperature Max230°C
Resistance @ 0°C100ohm
Probe Diameter12.7mm
Probe Length31.75mm
Cable Length - Metric1m
Cable Length - Imperial3.3ft
Technical Specifications
Sensing Temperature Min
-50°C
Resistance
100ohm
Measured Temperature Max
230°C
Probe Diameter
12.7mm
Cable Length - Metric
1m
Sensing Temperature Max
230°C
Measured Temperature Min
-50°C
Resistance @ 0°C
100ohm
Probe Length
31.75mm
Cable Length - Imperial
3.3ft
Technical Docs (1)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:United States
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:United States
Country in which last significant manufacturing process was carried out
Tariff No:90251900
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.029938
