E2B-M18LS08-M1-B1 OMS
Inductive Proximity Sensor, Cylindrical, E2B Series, M18, 8 mm, PNP-NO, 10 V to 30 V, Connector

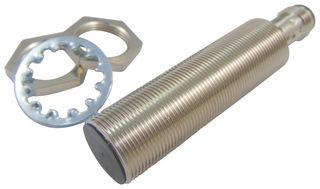

Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | OMRON INDUSTRIAL AUTOMATION |
|---|---|
| Manufacturer Part No | E2B-M18LS08-M1-B1 OMSCopy |
| Manufacturer Standard Lead Time | 8 weeks |
| Order Code | 2667259 |
| Your Part Number | |
| Technical Datasheet |
3 total stock globally
Need more?
3 Delivery in 3-5 Business Days(UK stock)
| Quantity | Price (Incl GST) |
|---|---|
| 1+ | $90.040 ($103.546) |
| 5+ | $83.940 ($96.531) |
| 10+ | $82.560 ($94.944) |
| 25+ | $81.180 ($93.357) |
| 50+ | $79.560 ($91.494) |
| 100+ | $77.930 ($89.6195) |
| 500+ | $76.310 ($87.7565) |
Price for:Each
Minimum: 1
Multiple: 1
$90.04 ($103.55 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | OMRON INDUSTRIAL AUTOMATION |
|---|---|
| Manufacturer Part No | E2B-M18LS08-M1-B1 OMSCopy |
| Manufacturer Standard Lead Time | 8 weeks |
| Order Code | 2667259 |
| Technical Datasheet | |
| Sensing Range Max | 8mm |
| Sensor Type | Inductive Proximity Sensor |
| Operating Temperature Max | 70°C |
| Thread Size - Metric | M18 |
| Sensing Distance Min | - |
| Sensing Distance Max | - |
| Sensor Output Type | PNP |
| Supply Voltage DC Min | 10V |
| Sensing Distance Nom | 8mm |
| Supply Voltage Min | 10VDC |
| Supply Voltage DC Max | 30V |
| Supply Voltage Max | 30VDC |
| Sensor Output Type | 3-Wire, PNP, NO |
| Sensor Case / Package | Cylindrical M18 Thread |
| Sensor Terminals | M12 Connector |
| Sensor Body Material | Brass |
| IP Rating | IP67 |
| Operating Temperature Min | -25°C |
Product Overview
The E2B-M18LS08-M1-B1 OMS from Omron Industrial Automation is an E2B series cylindrical proximity sensor. It is a perfect fit for standard environment and uses high-frequency oscillations. It resists heat, chemicals and water better than rectangular sensors.
- M12, long barrel, shielded sensor
- Cylindrical, metric threaded, brass housing
- Sensing distance is 8mm
- M12 connector
- PNP output
- Operating mode is normally open (NO)
- Power supply voltage range from 10VDC to 30VDC, operating temperature range from -25°C to 70°C
- Yellow LED 360 degree indication
- Insulation resistance is 50Mohm min at 500VDC, dielectric strength is 1000VAC at 50/60Hz
- Approved by IEC60529, EN60947-5-2 standards, water resistance IP67
Applications
Sensing & Instrumentation, Industrial
Technical Specifications
| Sensing Range Max | 8mm |
|---|---|
| Operating Temperature Max | 70°C |
| Sensing Distance Min | - |
| Sensor Output Type | PNP |
| Sensing Distance Nom | 8mm |
| Supply Voltage DC Max | 30V |
| Sensor Output Type | 3-Wire, PNP, NO |
| Sensor Terminals | M12 Connector |
| IP Rating | IP67 |
| Sensor Type | Inductive Proximity Sensor |
|---|---|
| Thread Size - Metric | M18 |
| Sensing Distance Max | - |
| Supply Voltage DC Min | 10V |
| Supply Voltage Min | 10VDC |
| Supply Voltage Max | 30VDC |
| Sensor Case / Package | Cylindrical M18 Thread |
| Sensor Body Material | Brass |
| Operating Temperature Min | -25°C |
Technical Docs (2)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Indonesia Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 90318080 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .0807 |
