ARRAYJ-30035-16P-PCB

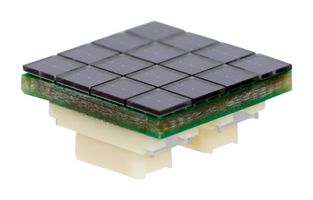

Photomultiplier 4x4 3mm Sensor Array , For Use with On Semiconductor ARRAYJ-BOB3-16P Breakout Boards

ON SEMICONDUCTOR ARRAYJ-30035-16P-PCB
ON SEMICONDUCTOR ARRAYJ-30035-16P-PCB

Image is for illustrative purposes only. Please refer to product description.

Manufacturer Part No:
ARRAYJ-30035-16P-PCB
Order Code:
2949097
Product Range
J-Series SiPM Sensor
See all Technical Docs

Product Range Selector (J-Series SiPM Sensor)

See all from this product range

Product Overview

ON Semiconductor's range of J-Series SiPM sensors have been used to create high fill-factor, scaleable arrays. The sensors are mounted onto PCB boards with minimal dead space, forming arrays with industry-leading fill factor of up to 90%. The ArrayJ products with connectors can be used to interface with the user's own readout via a mating connector, or to a ON Semiconductor Breakout Board (BOB).
  • Each SiPM sensor in the array has three electrical connections: fast output, standard output and common
  • The substrates (cathodes) of all sensors are summed together to form the common I/O
  • Each individual fast output and standard I/O (anode) are routed to its own output pin

Product Information

Want to see similar products? Simply select your required attributes below and hit the button ×


:
J-Series SiPM Sensor

:
4mm x 4mm

:
35µm

:
5676Microcells

:
450nm

:
Module

:
40Pins

:
MSL 1 - Unlimited
Find similar products Choose and modify the attributes above to find similar products.

Technical Docs (1)

2 total stock globally Need more?

2 available for 4 - 5 business days delivery

$1,031.41 ( $1,186.12  Inc. GST)

Pricing is unavailable. Please contact customer services.

Price for:
Each
Multiple: 1 Minimum: 1
Quantity Price (Incl GST) Your Price


1+ $1,031.41 ($1,186.12)
