1N5408RLG.
STANDARD DIODE, 3A, 1KV, AXIAL

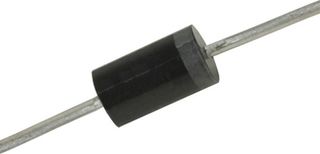

Image is for illustrative purposes only. Please refer to product description.
ManufacturerONSEMI
Manufacturer Part No1N5408RLG.
Order Code1278512
Product Range1N5408 Series
Technical Datasheet
4,044 total stock globally
Need more?
3866 Delivery in 10-14 Business Days(US stock)
178 Delivery in 3-5 Business Days(UK stock)
| Quantity | Price (Incl GST) |
|---|---|
| 1+ | $0.684 ($0.7866) |
| 10+ | $0.468 ($0.5382) |
| 25+ | $0.384 ($0.4416) |
| 50+ | $0.299 ($0.3438) |
Price for:Each (Supplied on Cut Tape)
Minimum: 1
Multiple: 1
$0.68 ($0.79 inc GST)
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerONSEMI
Manufacturer Part No1N5408RLG.
Order Code1278512
Product Range1N5408 Series
Technical Datasheet
Repetitive Peak Reverse Voltage1kV
Average Forward Current3A
Diode ConfigurationSingle
Forward Voltage Max1.47V
Reverse Recovery Time-
Forward Surge Current200A
Operating Temperature Max150°C
Diode Case StyleAxial Leaded
No. of Pins2Pins
Product Range1N5408 Series
Qualification-
SVHCLead
Technical Specifications
Repetitive Peak Reverse Voltage
1kV
Diode Configuration
Single
Reverse Recovery Time
-
Operating Temperature Max
150°C
No. of Pins
2Pins
Qualification
-
Average Forward Current
3A
Forward Voltage Max
1.47V
Forward Surge Current
200A
Diode Case Style
Axial Leaded
Product Range
1N5408 Series
SVHC
Lead
Technical Docs (2)
Alternatives for 1N5408RLG.
4 Products Found
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Philippines
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Philippines
Country in which last significant manufacturing process was carried out
Tariff No:85411000
RoHS Compliant:Y-Ex
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:Lead
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.001598
