FDME1024NZT
Dual MOSFET, N Channel, 20 V, 20 V, 3.8 A, 3.8 A, 0.055 ohm

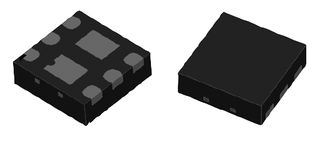

Image is for illustrative purposes only. Please refer to product description.
1,460 total stock globally
Need more?
1460 Delivery in 3-5 Business Days(UK stock)
| Quantity | Price (Incl GST) |
|---|---|
| 100+ | $0.838 ($0.9637) |
| 500+ | $0.544 ($0.6256) |
| 5000+ | $0.504 ($0.5796) |
| 15000+ | $0.495 ($0.5692) |
| 40000+ | $0.485 ($0.5578) |
| 75000+ | $0.474 ($0.5451) |
Price for:Each (Supplied on Cut Tape)
Minimum: 100
Multiple: 5
$83.80 ($96.37 inc GST)
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerONSEMI
Manufacturer Part NoFDME1024NZT
Order Code2083357RL
Technical Datasheet
Channel TypeN Channel
Transistor PolarityN Channel
Drain Source Voltage Vds N Channel20V
Drain Source Voltage Vds20V
Drain Source Voltage Vds P Channel20V
Continuous Drain Current Id3.8A
Continuous Drain Current Id N Channel3.8A
On Resistance Rds(on)0.055ohm
Continuous Drain Current Id P Channel3.8A
Drain Source On State Resistance N Channel0.055ohm
Transistor MountingSurface Mount
Rds(on) Test Voltage4.5V
Drain Source On State Resistance P Channel0.055ohm
Gate Source Threshold Voltage Max700mV
Transistor Case StyleµFET
No. of Pins6Pins
Power Dissipation Pd1.4W
Power Dissipation N Channel1.4W
Power Dissipation P Channel1.4W
Operating Temperature Max150°C
Product Range-
Qualification-
Automotive Qualification Standard-
MSLMSL 1 - Unlimited
SVHCNo SVHC (27-Jun-2024)
Product Overview
The FDME1024NZT is a dual N-channel PowerTrench® MOSFET designed specifically as a single package solution for dual switching requirement in cellular handset and other ultra-portable applications. It has two independent N-channel MOSFETs with low ON-state resistance for minimum conduction losses. The MicroFET thin package offers exceptional thermal performance for its physical size and is well suited to switching and linear mode applications.
- Low profile
- Halogen-free
- ±8V Gate to source voltage
- 3.8A Continuous drain current
- 6A Pulsed drain current
Applications
Industrial, Power Management
Technical Specifications
Channel Type
N Channel
Drain Source Voltage Vds N Channel
20V
Drain Source Voltage Vds P Channel
20V
Continuous Drain Current Id N Channel
3.8A
Continuous Drain Current Id P Channel
3.8A
Transistor Mounting
Surface Mount
Drain Source On State Resistance P Channel
0.055ohm
Transistor Case Style
µFET
Power Dissipation Pd
1.4W
Power Dissipation P Channel
1.4W
Product Range
-
Automotive Qualification Standard
-
SVHC
No SVHC (27-Jun-2024)
Transistor Polarity
N Channel
Drain Source Voltage Vds
20V
Continuous Drain Current Id
3.8A
On Resistance Rds(on)
0.055ohm
Drain Source On State Resistance N Channel
0.055ohm
Rds(on) Test Voltage
4.5V
Gate Source Threshold Voltage Max
700mV
No. of Pins
6Pins
Power Dissipation N Channel
1.4W
Operating Temperature Max
150°C
Qualification
-
MSL
MSL 1 - Unlimited
Technical Docs (2)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Thailand
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Thailand
Country in which last significant manufacturing process was carried out
Tariff No:85412900
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (27-Jun-2024)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.000054
