Product Information
ManufacturerPANASONIC

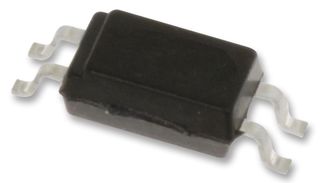

Manufacturer Part NoAPV2111V
Order Code2095709
Product RangeAPV
Technical Datasheet
Contact FormSPST-NO (1 Form A)
Load Type-
Load Voltage Max8.2V
Load Current8µA
MOSFET Relay Package StyleSSOP-4
Relay MountingSurface Mount
Relay TerminalsGull Wing
On State Resistance Max-
Isolation Voltage1.5kV
I/O Capacitance Typ0.8pF
Off State Leakage Current Max-
Product RangeAPV
SVHCNo SVHC (10-Jun-2022)
Product Overview
The APV2111V is a SMD MOSFET Relay for electronic circuits power supply (Vcc). The photovoltaic MOSFET driver with 0.1ms typical release time. The MOSFET can be turned off quickly in an urgent situation. With a built-in control circuit, an external resistor is not needed. This contributes to making substrates more compact.
- High-speed switching
- Space saving
- High insulation
- 8μA Typical short circuit current
- -40 to 85°C Operating temperature range
Applications
Industrial, Consumer Electronics
Technical Specifications
Contact Form
SPST-NO (1 Form A)
Load Voltage Max
8.2V
MOSFET Relay Package Style
SSOP-4
Relay Terminals
Gull Wing
Isolation Voltage
1.5kV
Off State Leakage Current Max
-
SVHC
No SVHC (10-Jun-2022)
Load Type
-
Load Current
8µA
Relay Mounting
Surface Mount
On State Resistance Max
-
I/O Capacitance Typ
0.8pF
Product Range
APV
Technical Docs (3)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Japan
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Japan
Country in which last significant manufacturing process was carried out
Tariff No:85412900
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (10-Jun-2022)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.000281
