ENW49C02A3KF
Wi-Fi Embedded b/g/n Module, 2x UART, 3V to 3.6V Supply, 1Mbps, -97dBm Sensitivity

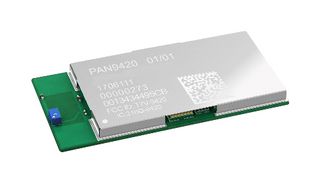

Image is for illustrative purposes only. Please refer to product description.
ManufacturerPANASONIC
Manufacturer Part NoENW49C02A3KF
Order Code2783826
Product RangePAN9420, PAN9320
Also Known AsPAN9420-EU
Technical Datasheet
Available to Order
Manufacturer Standard Lead Time: 18 week(s)
Notify me when back in stock
| Quantity | Price (Incl GST) |
|---|---|
| 1+ | $37.830 ($43.5045) |
| 5+ | $36.090 ($41.5035) |
| 10+ | $34.300 ($39.445) |
| 50+ | $33.210 ($38.1915) |
| 100+ | $32.120 ($36.938) |
| 250+ | $30.820 ($35.443) |
Price for:Each (Supplied on Cut Tape)
Minimum: 1
Multiple: 1
$37.83 ($43.50 inc GST)
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerPANASONIC
Manufacturer Part NoENW49C02A3KF
Order Code2783826
Product RangePAN9420, PAN9320
Also Known AsPAN9420-EU
Technical Datasheet
Frequency RF2.4GHz
Module InterfaceUART
Module ApplicationsIoT, Multimedia, Home Electronics, Home Appliances & White Goods, Industrial & Home Automation
Product RangePAN9420, PAN9320
SVHCTo Be Advised
Product Overview
The <bold>PAN9420</bold> is a 2.4 GHz ISM band Wi-Fi-embedded module which includes a wireless radio and an MCU for easy integration of Wi-Fi connectivity into various electronic devices.
- Fully embedded: integrated full-featured network stack
- Contains all necessary IoT functionality (Place & Play)
- Integrated webserver with AJAX/JSON for web applications
- No stack or software implementation needed on a host MCU
- Simultaneous support of Access-Point- & Infrastructure mode
- Fully automatical IP configuration
- DHCP server offers IP configuration in AP mode
- Access by names (http://yourdevice)
- Integrated TCP/IP network stack: IPv4, ARP, and AutoIP
- Supports TLS/SSL, https, and Wi-Fi security (WPA2) for secure data connection
- Over-the-Air firmware update
- Two UART interfaces (command and transparent data)
- Integrated QSPI flash memory for customer web contents and configuration file
Applications
Wireless
Technical Specifications
Frequency RF
2.4GHz
Module Applications
IoT, Multimedia, Home Electronics, Home Appliances & White Goods, Industrial & Home Automation
SVHC
To Be Advised
Module Interface
UART
Product Range
PAN9420, PAN9320
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Germany
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Germany
Country in which last significant manufacturing process was carried out
Tariff No:85176200
US ECCN:5A992.c
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:To Be Advised
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.002
