ERJB1BF1R3U
SMD Chip Resistor, 1.3 ohm, ± 1%, 2 W, 1020 [2550 Metric], Thick Film, High Power

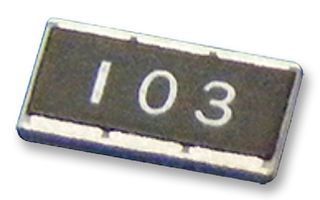

Image is for illustrative purposes only. Please refer to product description.
![PANASONIC ERJB1BF1R3U SMD Chip Resistor, 1.3 ohm, ± 1%, 2 W, 1020 [2550 Metric], Thick Film, High Power](https://nz.element14.com/productimages/standard/en_GB/2293935-40.jpg)
| Manufacturer | PANASONIC |
|---|---|
| Manufacturer Part No | ERJB1BF1R3UCopy |
| Manufacturer Standard Lead Time | 24 weeks |
| Order Code | Re-Reel2294006RL Cut Tape2294006 |
| Product Range | ERJ-B1 Series |
| Your Part Number | |
| Technical Datasheet |
2,019 total stock globally
Need more?
2,019 Delivery in 3-5 Business Days(UK stock)
Packaging Options
| Packaging Type | Quantity | Unit Price: | Total |
|---|---|---|---|
| Cut Tape | 10 | $2.330 | $23.30 |
Cut Tape & Re-Reel
| Quantity | Price (Incl GST) |
|---|---|
| 10+ | $2.330 ($2.6795) |
| 100+ | $2.290 ($2.6335) |
| 500+ | $2.240 ($2.576) |
| 1000+ | $2.200 ($2.530) |
| 2500+ | $2.150 ($2.4725) |
| 5000+ | $2.100 ($2.415) |
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | PANASONIC |
|---|---|
| Manufacturer Part No | ERJB1BF1R3UCopy |
| Manufacturer Standard Lead Time | 24 weeks |
| Order Code | Re-Reel2294006RL Cut Tape2294006 |
| Product Range | ERJ-B1 Series |
| Technical Datasheet | |
| Resistance | 1.3ohm |
| Resistance Tolerance | ± 1% |
| Power Rating | 2W |
| Resistor Case / Package | 1020 [2550 Metric] |
| Resistor Technology | Thick Film |
| Resistor Type | High Power |
| Product Range | ERJ-B1 Series |
| Temperature Coefficient | ± 100ppm/°C |
| Voltage Rating | 200V |
| Product Length | 2.5mm |
| Product Width | 5mm |
| Operating Temperature Min | -55°C |
| Operating Temperature Max | 155°C |
| Qualification | AEC-Q200 |
| SVHC | No SVHC (04-Feb-2026) |
Product Overview
ERJB1BF1R3U is an ERJ B type, ERJ-B1 series, wide terminal, high power chip resistor. It is recommended for applications such as automotive electronic circuits including ECUs (Electrical Control Unit), anti-lock braking systems and air-bag systems, current sensing for power supply circuits in a variety of equipment.
- 1.3ohm resistance
- ±1% resistance tolerance
- 1020 [2550 Metric] resistor case
- ±100ppm/°C temperature coefficient
- High solder-joint reliability by wide terminal construction
- Excellent heat dissipation characteristics by wide terminal construction
- AEC-Q200 compliant
- Category temperature range from -55 to +155°C
- 200V voltage rating and 2W power rating
Technical Specifications
| Resistance | 1.3ohm |
|---|---|
| Power Rating | 2W |
| Resistor Technology | Thick Film |
| Product Range | ERJ-B1 Series |
| Voltage Rating | 200V |
| Product Width | 5mm |
| Operating Temperature Max | 155°C |
| SVHC | No SVHC (04-Feb-2026) |
| Resistance Tolerance | ± 1% |
|---|---|
| Resistor Case / Package | 1020 [2550 Metric] |
| Resistor Type | High Power |
| Temperature Coefficient | ± 100ppm/°C |
| Product Length | 2.5mm |
| Operating Temperature Min | -55°C |
| Qualification | AEC-Q200 |
Technical Docs (1)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Japan Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85332100 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Y-Ex RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (04-Feb-2026) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .000002 |
