PHOENIX CONTACT 1825378

Pluggable Terminal Block, 5.08 mm, 8 Ways, 24AWG to 12AWG, 2.5 mm², Screw, 12 A

PHOENIX CONTACT 1825378
×

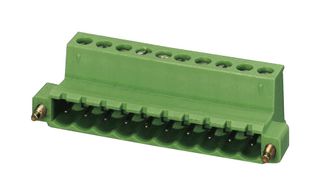

Image is for illustrative purposes only. Please refer to product description.

Manufacturer Part No:
1825378
Order Code:
2776514
  • Enter your custom part number in the textbox above
  • Maximum Part Numbers added.
    Delete older entries to add more.

Part Number Saved

Part Number Saved

Also Known As:
1825378 (IC 2,5/ 8-STF-5,08)
Technical Datasheet:
1825378   Datasheet
ECAD / MCAD
Supply Frame Models Link
See all Technical Docs

Product Overview

The IC 2,5/ 8-STF-5,08 from Phoenix Contact is a 8 position pluggable terminal block with screw connection, tension sleeve. This terminal block comes with 5.08mm pitch spacing and suitable for wire size ranging from 24AWG to 12AWG.
  • Green colour insulation
  • Tin contact surface, PA insulating material
  • 12A nominal current, 320V rated voltage (III/2)
  • Flammability rating according to UL94 V0
  • Well-known connection principle allows worldwide use
  • Easy PCB replacement
  • Inverted connector with pin contacts for touch-proof device o/p or free-hanging cable connections
  • Can be combined with the MSTB 2,5 range and maximum contact force
  • CSA, VDE, IECEE CB, EAC, UL, cUL and cULus recognized
  • Dimension of terminal block is 19mm x 50.76mm x 15mm (L x W x H)

Applications

Industrial

Product Information

Want to see similar products? Simply select your required attributes below and hit the button ×


:
5.08mm

:
2.5mm²

:
12A

:
250V

Find similar products Choose and modify the attributes above to find similar products.

Technical Documents (1)

Also Known As

1825378 (IC 2,5/ 8-STF-5,08)
