4826-2.
IC Test Clip, 1 Contacts, Gold Plated Contacts, 4826 Series
Image is for illustrative purposes only. Please refer to product description.
ManufacturerPOMONA
Manufacturer Part No4826-2.
Order Code2829225
Product Range4826 Series
Technical Datasheet
2 total stock globally
Need more?
2 Delivery in 3-5 Business Days(UK stock)
| Quantity | Price (Incl GST) |
|---|---|
| 1+ | $26.880 ($30.912) |
Price for:Each
Minimum: 1
Multiple: 1
$26.88 ($30.91 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerPOMONA
Manufacturer Part No4826-2.
Order Code2829225
Product Range4826 Series
Technical Datasheet
IC Case Styles-
No. of Contacts1Contacts
Pitch Spacing-
Contact PlatingGold Plated Contacts
Product Range4826 Series
SVHCNo SVHC (15-Jun-2015)
Product Overview

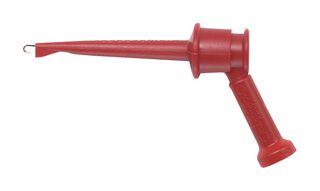

4826-2 is Minigrabber® test clip has a pin jack built right into the plunger. Excellent for attaching the Grabber test clip directly to the end of a pin tip patch cord or it can be used as an adapter for miniature test probes with 2mm tips.
- 165 beryllium copper alloy per QQ-C-533 contact, 302 stainless steel spring
- 360 brass alloy per QQ-B-626 1/2 hard pin tip jack
- Colour is red
- 25 beryllium copper berylco per QQ-C-533 Cond. HT pin tip jack spring
- Gold plated per MIL-G-45204 Class 00 contact finish
- Glass filled nylon insulation
- Operating voltage of 30VAC/60VDC, current rating of 5A
- Maximum operating temperature of +216°F
Technical Specifications
IC Case Styles
-
Pitch Spacing
-
Product Range
4826 Series
No. of Contacts
1Contacts
Contact Plating
Gold Plated Contacts
SVHC
No SVHC (15-Jun-2015)
Technical Docs (1)
Associated Products
8 Products Found
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:United States
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:United States
Country in which last significant manufacturing process was carried out
Tariff No:90309000
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:To be advised
SVHC:No SVHC (15-Jun-2015)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.009072
