Product Information
ManufacturerPOMONA
Manufacturer Part No6737
Order Code7264963
Technical Datasheet
Convert From Coax TypeBNC
Convert From GenderJack
Convert To Coax TypeBNC
Convert To GenderJack
Adapter Body StyleStraight Adapter
Impedance75ohm
Connector TypeRF Coaxial
Product Range-
Product Overview

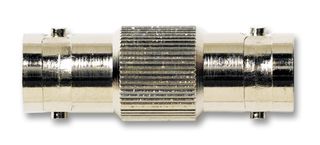

The 6737 is a RF/coaxial Straight Adapter with BNC jack to BNC jack connection. It has precision machined brass with tarnish nickel-plated resistant body, high density PTFE insulator, gold-plated brass male centre pin contact and gold-plated heat treated beryllium copper female centre contact.
- 75Ω Nominal impedance
- 1.5mΩ Centre contact resistance
- 5000MΩ Insulation resistance
- -65 to 155°C Operating temperature range
- 500 Insertions
Applications
Imaging, Video & Vision, RF Communications, Communications & Networking
Technical Specifications
Convert From Coax Type
BNC
Convert To Coax Type
BNC
Adapter Body Style
Straight Adapter
Connector Type
RF Coaxial
Convert From Gender
Jack
Convert To Gender
Jack
Impedance
75ohm
Product Range
-
