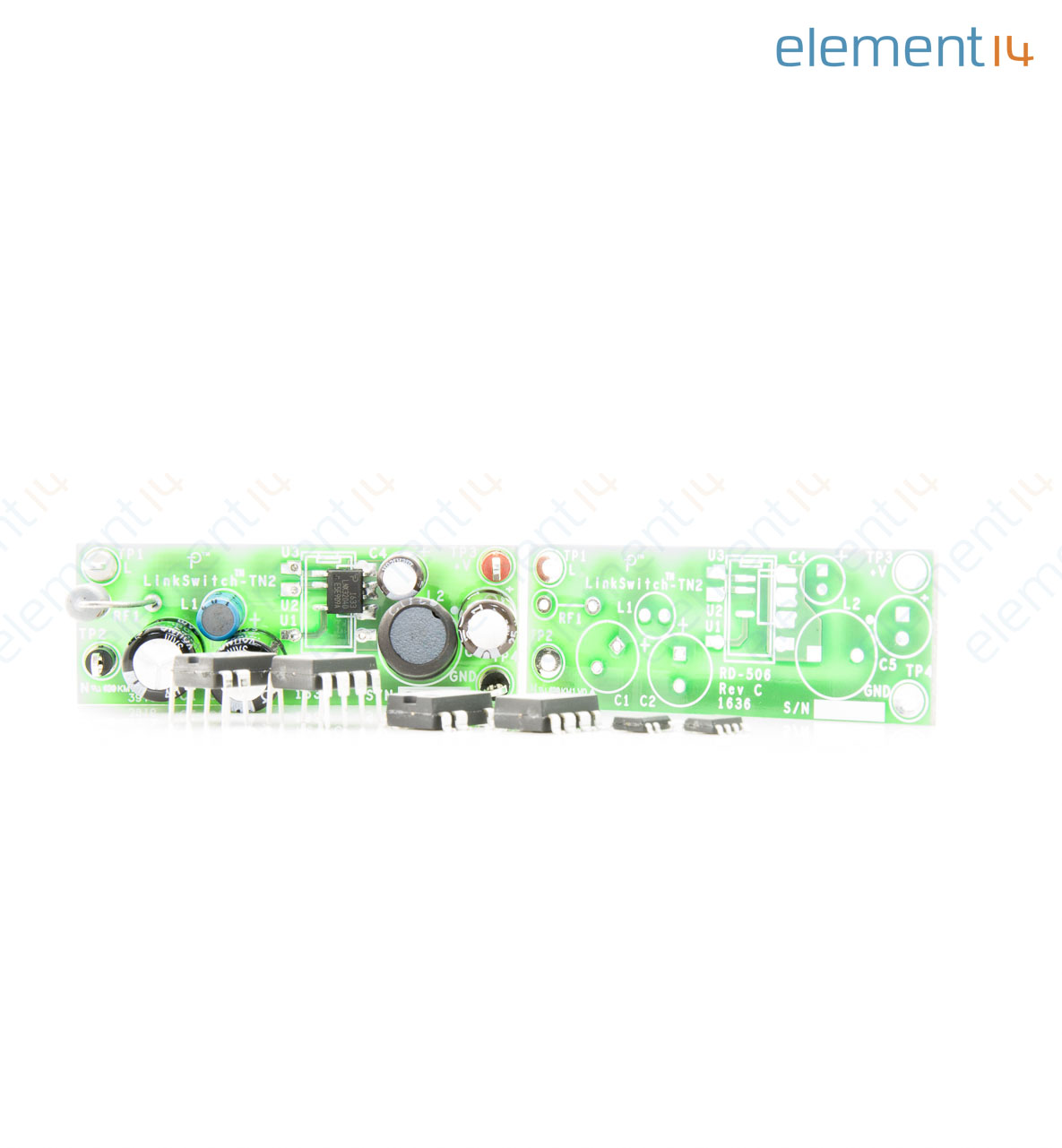

POWER INTEGRATIONS RDK-506
Reference Design Kit, LinkSwitch™-TN2 Highly Energy Efficient Off-line Switcher IC
- Manufacturer:
- POWER INTEGRATIONS POWER INTEGRATIONS
- Manufacturer Part No:
- RDK-506
- Order Code:
- 2708413
- Technical Datasheet:
- RDK-506 Datasheet
- ECAD / MCAD
-
Product Overview
Reference design kit for a 1.44W non-isolated buck converter using LinkSwitch™ -TN2 LNK3204D/P/G. Typical application includes small appliance. The board provides a non-isolated 12V, 120mA continuous output. In metering applications this is used to supply the control circuits and micro controller. LinkSwitch-TN2 integrates a 725V MOSFET and control circuitry into a single low cost IC. Regulation is achieved using a low cost resistor divider feedback network. The switching frequency jitter feature of the LinkSwitch-TN2 family and the 66KHz switching frequency of operation helps reduce EMI.
- Input: 85VAC to 265VAC, output: 12V, 120mA
- Highly integrated solution
- Lowest possible component count
- No optocoupler or zener diode required for regulation
- Thermal overload protection with automatic recovery
- <30mW no-load consumption, >75% efficiency at full load
- <±3% load regulation
