POWER INTEGRATIONS RDK-747

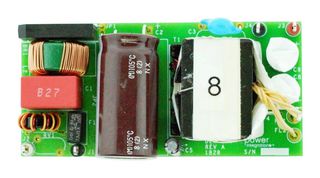

Reference Design Board, INN3679C-H606, Industrial Power Supply Unit
- Manufacturer:
- POWER INTEGRATIONS POWER INTEGRATIONS
- Manufacturer Part No:
- RDK-747
- Order Code:
- 3580560
- Technical Datasheet:
- RDK-747 Datasheet
- ECAD / MCAD
-
Product Overview
65W charger for industrial power supply applications is designed for 90VAC to 265VAC input, 20V/3.25A output using InnoSwitch3-EP (INN3679C-H606) featuring PowiGaN™ technology. The design showcases the high power density, very low component count and efficiency possible due to the high level of integration of the InnoSwitch3-EP controller with exceptional PowiGaN efficiency. This design shows the high power density and efficiency that is possible due to the high level of integration of the InnoSwitch3-EP controller providing exceptional performance.
- 90VAC to 265VAC input, 20V / 3.25A output
- InnoSwitch3-EP is industry first AC/DC IC with isolated, safety rated integrated feedback
- All the benefits of secondary-side control with simplicity of primary-side regulation
- Meets DOE6 and CoC Tier 2 V5 2016
- < 40mW no-load input power
- Primary sensed overvoltage protection
- Very low component count (43 components)
- >6db margin on conducted EMI
- Very high average efficiency (92.5% at 115VAC and 230VAC)
- Very high full-load efficiency (92% at 115VAC and 93.5% at 230VAC)
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product Information
Want to see similar products? Simply select your required attributes below and hit the button ×
- :
- Power Integrations
- :
- INN3679C-H606
- :
- Power Management
- :
- Industrial Power Supply Unit
- :
- -
- :
- -
- :
- -
- :
- Reference Design Board INN3679C-H606
- :
- -
Technical Documents (1)
13 total stock globally Need more?
×
You can reserve stock now just order your desired quantity and checkout as normal. The quantity that cant be dispatched now will be placed on back order and sent as soon as we get a delivery from our supplier. You only get charged when the products are dispatched to you.
2 more will be available on 28/12/23
Extra stock is available upon order to the Supplier Lead Time which is approximately 29/04/24
13 UK stock available for 5-8 business days delivery
Due to market conditions delivery times are for general guidance only and may be subject to change at short notice
