RG59TWIN

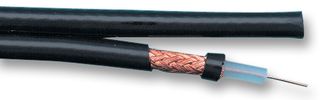

Coaxial Cable, Composite, RG59B, Copper Coated Steel, 12.3 mm, Black
Image is for illustrative purposes only. Please refer to product description.
ManufacturerPRO POWER
Manufacturer Part NoRG59TWIN
Order Code1390058
Your Part Number
Technical Datasheet
No Longer Manufactured
Product Information
ManufacturerPRO POWER
Manufacturer Part NoRG59TWIN
Order Code1390058
Technical Datasheet
Coaxial Cable TypeRG59B
Conductor Area CSA-
Conductor MaterialCopper Coated Steel
External Diameter12.3mm
Impedance-
Jacket ColourBlack
Jacket MaterialPVC
No. of Max Strands x Strand Size-
Product Range-
Reel Length (Imperial)328ft
Reel Length (Metric)100m
Wire Gauge-
Product Overview
- CPR: Not Yet Qualified
- 2x RG59BU coaxial cables laid side by side in a figure 8 construction
- Suitable for data transmission and with CCTV equipment
- CCS conductor
- 16/7/0.11mm copper braid
- Solid PE dielectric
- Braid coverage 80%
Technical Specifications
Coaxial Cable Type
RG59B
Conductor Material
Copper Coated Steel
Impedance
-
Jacket Material
PVC
Product Range
-
Reel Length (Metric)
100m
Conductor Area CSA
-
External Diameter
12.3mm
Jacket Colour
Black
No. of Max Strands x Strand Size
-
Reel Length (Imperial)
328ft
Wire Gauge
-
Technical Docs (1)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Tariff No:85442000
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:To be advised
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):14
