ASE02506MS-LW90-DSM-R
Speaker, 650 Hz to 20 kHz, 6 ohm, 1.2 W, 93 dB, Square, SMD

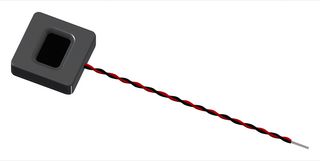

Image is for illustrative purposes only. Please refer to product description.
9 total stock globally
Need more?
9 Delivery in 3-5 Business Days(UK stock)
| Quantity | Price (Incl GST) |
|---|---|
| 1+ | $7.850 ($9.0275) |
| 3+ | $7.370 ($8.4755) |
| 5+ | $6.890 ($7.9235) |
| 10+ | $6.410 ($7.3715) |
| 20+ | $5.840 ($6.716) |
| 50+ | $5.250 ($6.0375) |
Price for:Each
Minimum: 1
Multiple: 1
$7.85 ($9.03 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerPUI AUDIO
Manufacturer Part NoASE02506MS-LW90-DSM-R
Order Code4411403
Technical Datasheet
Driver TypeGeneral Purpose
Impedance6ohm
External Width - Metric25mm
Power Rating Nom1W
Resonant Frequency750Hz
Sound Pressure Level (SPL)93dB
Speaker ShapeSquare
External Width - Imperial0.98"
Product Dimensions25mm x 25mm x 7mm
Frequency Response Min650Hz
Frequency Range650Hz to 20kHz
Frequency Response Max20kHz
Temperature GradeStandard
IP Rating-
Product Range-
Speaker MountingSMD
Power Rating Max1.2W
External Length - Metric25mm
External Depth - Metric7mm
External Length - Imperial0.98"
External Depth - Imperial0.28"
SVHCNo SVHC (21-Jan-2025)
Technical Specifications
Driver Type
General Purpose
External Width - Metric
25mm
Resonant Frequency
750Hz
Speaker Shape
Square
Product Dimensions
25mm x 25mm x 7mm
Frequency Range
650Hz to 20kHz
Temperature Grade
Standard
Product Range
-
Power Rating Max
1.2W
External Depth - Metric
7mm
External Depth - Imperial
0.28"
Impedance
6ohm
Power Rating Nom
1W
Sound Pressure Level (SPL)
93dB
External Width - Imperial
0.98"
Frequency Response Min
650Hz
Frequency Response Max
20kHz
IP Rating
-
Speaker Mounting
SMD
External Length - Metric
25mm
External Length - Imperial
0.98"
SVHC
No SVHC (21-Jan-2025)
Technical Docs (1)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Tariff No:85182100
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (21-Jan-2025)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.004
