R284C0351025
RF / Coaxial Cable Assembly, 3.28 ft, 1 m, RG142, BNC Straight Plug, N Type Plug, 50ohm, 50 ohm

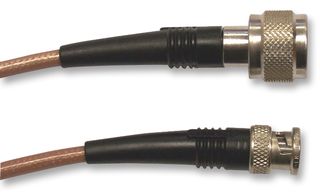

Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | RADIALL |
|---|---|
| Manufacturer Part No | R284C0351025Copy |
| Manufacturer Standard Lead Time | 32 weeks |
| Order Code | 1351895 |
| Your Part Number | |
| Technical Datasheet |
54 total stock globally
Need more?
54 Delivery in 3-5 Business Days(UK stock)
| Quantity | Price (Incl GST) |
|---|---|
| 1+ | $278.860 ($320.689) |
| 5+ | $277.230 ($318.8145) |
| 10+ | $275.600 ($316.940) |
| 25+ | $273.960 ($315.054) |
| 50+ | $216.220 ($248.653) |
| 100+ | $216.200 ($248.630) |
Price for:Each
Minimum: 1
Multiple: 1
$278.86 ($320.69 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | RADIALL |
|---|---|
| Manufacturer Part No | R284C0351025Copy |
| Manufacturer Standard Lead Time | 32 weeks |
| Order Code | 1351895 |
| Technical Datasheet | |
| Cable Length - Imperial | 3.28ft |
| Connector to Connector | BNC Plug to N-Type Plug |
| Cable Length - Metric | 1m |
| Coaxial Cable Type | RG142 |
| Connector Type A | BNC Straight Plug |
| Connector Type B | N Type Plug, 50ohm |
| Impedance | 50ohm |
| Jacket Colour | Brown |
| Product Range | - |
| SVHC | Lead (04-Feb-2026) |
Product Overview
The R284C0351025 is a 1m brown RG142 flexible RF Coaxial Cable Assembly with BNC straight plug crimp to BNC straight plug crimp connection.
- 50 ±2Ω Characteristic impedance
- 1.01dB Maximum at 3GHz and 20°C insertion loss
- 5000MΩ Minimum insulation resistance
- 500Veff Maximum voltage
- 500-cycle Life
- DC to 4GHz Frequency range
- -55 to 155°C Operating temperature range
Applications
RF Communications
Technical Specifications
| Cable Length - Imperial | 3.28ft |
|---|---|
| Cable Length - Metric | 1m |
| Connector Type A | BNC Straight Plug |
| Impedance | 50ohm |
| Product Range | - |
| Connector to Connector | BNC Plug to N-Type Plug |
|---|---|
| Coaxial Cable Type | RG142 |
| Connector Type B | N Type Plug, 50ohm |
| Jacket Colour | Brown |
| SVHC | Lead (04-Feb-2026) |
Technical Docs (2)
Alternatives for R284C0351025
3 Products Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | China Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85442000 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Y-Ex RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | Lead (04-Feb-2026) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .107 |
