R284C0351045

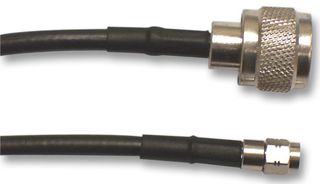

RF / Coaxial Cable Assembly, N-Type Plug to SMA Plug, RG58, 50 ohm, 19.69 ", 500 mm, Black
Image is for illustrative purposes only. Please refer to product description.
42 total stock globally
Need more?
42 Delivery in 3-5 Business Days(UK stock)
| Quantity | Price (Incl GST) |
|---|---|
| 1+ | $147.000 ($169.050) |
| 5+ | $146.300 ($168.245) |
| 10+ | $145.580 ($167.417) |
| 25+ | $144.860 ($166.589) |
| 50+ | $114.870 ($132.1005) |
| 100+ | $90.290 ($103.8335) |
Price for:Each
Minimum: 1
Multiple: 1
$147.00 ($169.05 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerRADIALL
Manufacturer Part NoR284C0351045
Order Code1349839
Technical Datasheet
Connector to ConnectorN-Type Plug to SMA Plug
Cable Length - Imperial19.69"
Cable Length - Metric500mm
Coaxial Cable TypeRG58
Connector Type AN Type Plug, 50ohm
Connector Type BSMA Plug, 50ohm
Impedance50ohm
Jacket ColourBlack
Product Range-
Product Overview
The R284C0351045 is a 500mm black RG58 flexible RF Coaxial Cable Assembly with N-type straight plug full crimp to SMA straight plug crimp connection.
- 50 ±2Ω Characteristic impedance
- 0.55dB Maximum at 1GHz and 20°C insertion loss
- 5000MΩ Minimum insulation resistance
- 335Veff Maximum voltage
- 100-cycle Life
- DC to 1GHz Frequency range
- -40 to 85°C Operating temperature range
Applications
RF Communications
Technical Specifications
Connector to Connector
N-Type Plug to SMA Plug
Cable Length - Metric
500mm
Connector Type A
N Type Plug, 50ohm
Impedance
50ohm
Product Range
-
Cable Length - Imperial
19.69"
Coaxial Cable Type
RG58
Connector Type B
SMA Plug, 50ohm
Jacket Colour
Black
Technical Docs (2)
Alternatives for R284C0351045
7 Products Found
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Tariff No:85442000
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Y-Ex
RoHS
RoHS Phthalates Compliant:Yes
RoHS
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.065317
