Print Page
R284C0351056
RF / Coaxial Cable Assembly, 3.28 ft, 1 m, RG316, SMA Straight Plug, SMA Plug, 50ohm, 50 ohm
Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | RADIALL |
|---|---|
| Manufacturer Part No | R284C0351056Copy |
| Manufacturer Standard Lead Time | 31 weeks |
| Order Code | 1349830 |
| Your Part Number | |
| Technical Datasheet |
117 total stock globally
Need more?
117 Delivery in 3-5 Business Days(UK stock)
| Quantity | Price (Incl GST) |
|---|---|
| 1+ | $127.060 ($146.119) |
| 5+ | $126.050 ($144.9575) |
| 10+ | $125.030 ($143.7845) |
| 25+ | $124.000 ($142.600) |
| 50+ | $98.330 ($113.0795) |
| 100+ | $96.370 ($110.8255) |
Price for:Each
Minimum: 1
Multiple: 1
$127.06 ($146.12 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | RADIALL |
|---|---|
| Manufacturer Part No | R284C0351056Copy |
| Manufacturer Standard Lead Time | 31 weeks |
| Order Code | 1349830 |
| Technical Datasheet | |
| Cable Length - Imperial | 3.28ft |
| Connector to Connector | SMA Plug to SMA Plug |
| Cable Length - Metric | 1m |
| Coaxial Cable Type | RG316 |
| Connector Type A | SMA Straight Plug |
| Connector Type B | SMA Plug, 50ohm |
| Impedance | 50ohm |
| Jacket Colour | Brown |
| Product Range | - |
| SVHC | Lead (04-Feb-2026) |
Product Overview

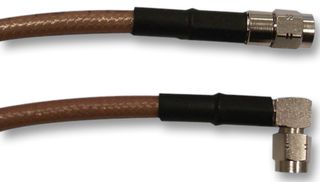

The R284C0351056 is a 1m brown RG316 flexible RF Coaxial Cable Assembly with SMA straight plug crimp to SMA right angle plug crimp connection.
- 50 ±2Ω Characteristic impedance
- 1.81dB Maximum at 3GHz and 20°C insertion loss
- 5000MΩ Minimum insulation resistance
- 250Veff Maximum voltage
- 100-cycle Life
- DC to 3GHz Frequency range
- -55 to 135°C Operating temperature range
Applications
RF Communications
Technical Specifications
| Cable Length - Imperial | 3.28ft |
|---|---|
| Cable Length - Metric | 1m |
| Connector Type A | SMA Straight Plug |
| Impedance | 50ohm |
| Product Range | - |
| Connector to Connector | SMA Plug to SMA Plug |
|---|---|
| Coaxial Cable Type | RG316 |
| Connector Type B | SMA Plug, 50ohm |
| Jacket Colour | Brown |
| SVHC | Lead (04-Feb-2026) |
Technical Docs (2)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | China Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85442000 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Y-Ex RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | Lead (04-Feb-2026) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .026 |
