R284C0351060
RF / Coaxial Cable Assembly, SMA Plug to SMA Plug, RG142, 50 ohm, 3.28 ft, 1 m, Brown

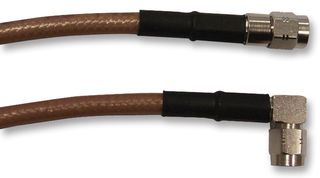

Image is for illustrative purposes only. Please refer to product description.
No Longer Stocked
Product Information
ManufacturerRADIALL
Manufacturer Part NoR284C0351060
Order Code1351921
Technical Datasheet
Connector to ConnectorSMA Plug to SMA Plug
Coaxial Cable TypeRG142
Impedance50ohm
Cable Length - Imperial3.28ft
Cable Length - Metric1m
Jacket ColourBrown
Product Range-
SVHCLead (08-Jul-2021)
Alternatives for R284C0351060
7 Products Found
Product Overview
The R284C0351060 is a 1m brown RG142 flexible RF Coaxial Cable Assembly with SMA straight plug full crimp to SMA right angle plug full crimp connection.
- 50 ±2Ω Characteristic impedance
- 1.01dB Maximum at 3GHz and 20°C insertion loss
- 5000MΩ Minimum insulation resistance
- 335Veff Maximum voltage
- 100-cycle Life
- DC to 12.4GHz Frequency range
- -55 to 135°C Operating temperature range
Applications
RF Communications
Technical Specifications
Connector to Connector
SMA Plug to SMA Plug
Impedance
50ohm
Cable Length - Metric
1m
Product Range
-
Coaxial Cable Type
RG142
Cable Length - Imperial
3.28ft
Jacket Colour
Brown
SVHC
Lead (08-Jul-2021)
Technical Docs (2)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:France
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:France
Country in which last significant manufacturing process was carried out
Tariff No:85369010
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:To be advised
SVHC:Lead (08-Jul-2021)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.075
