Print Page

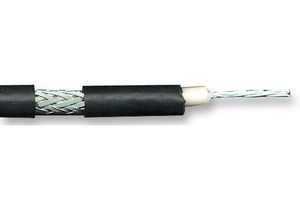

Image is for illustrative purposes only. Please refer to product description.

| Manufacturer | TE CONNECTIVITY - RAYCHEM |
|---|---|
| Manufacturer Part No | CLFH-178CK0135Copy |
| Manufacturer Standard Lead Time | 12 weeks |
| Order Code | 5051265 |
| Also Known As | E940393001 |
| Your Part Number | |
| Technical Datasheet |
34 total stock globally
1,500 more incoming. You can reserve stock now
34 Delivery in 3-5 Business Days(UK stock)
| Quantity | Price (Incl GST) |
|---|---|
| 1+ | $1,697.340 ($1,951.941) |
Price for:1 Reel: (328ft/100m)
Minimum: 1
Multiple: 1
$1,697.34 ($1,951.94 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | TE CONNECTIVITY - RAYCHEM |
|---|---|
| Manufacturer Part No | CLFH-178CK0135Copy |
| Manufacturer Standard Lead Time | 12 weeks |
| Order Code | 5051265 |
| Also Known As | E940393001 |
| Technical Datasheet | |
| Coaxial Cable Type | RG178 |
| Conductor Area CSA | - |
| Reel Length (Imperial) | 328ft |
| Reel Length (Metric) | 100m |
| External Diameter | 1.8mm |
| Impedance | 50ohm |
| Jacket Colour | Black |
| Jacket Material | LSZH |
| No. of Max Strands x Strand Size | 7 x 0.1mm |
| Product Range | - |
| Wire Gauge | 30AWG |
| Conductor Material | SPCCS (Silver Plated Copper Coated Steel) |
| SVHC | No SVHC (21-Jan-2025) |
Product Overview
The CLFH-178CK0135 is a 100m RG178 Coaxial Cable with silver plated copper coated steel conductor of 30AWG wire, black LSZH jacket, 1000V rated voltage.
- CPR: Not Yet Qualified
- 802Ω/km Conductor resistance
- 8kV Spark test
- 50Ω Impedance
Applications
Communications & Networking
Technical Specifications
| Coaxial Cable Type | RG178 |
|---|---|
| Reel Length (Imperial) | 328ft |
| External Diameter | 1.8mm |
| Jacket Colour | Black |
| No. of Max Strands x Strand Size | 7 x 0.1mm |
| Wire Gauge | 30AWG |
| SVHC | No SVHC (21-Jan-2025) |
| Conductor Area CSA | - |
|---|---|
| Reel Length (Metric) | 100m |
| Impedance | 50ohm |
| Jacket Material | LSZH |
| Product Range | - |
| Conductor Material | SPCCS (Silver Plated Copper Coated Steel) |
Alternatives for CLFH-178CK0135
1 Product Found
Associated Products
3 Products Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Great Britain Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85442000 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (21-Jan-2025) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .82 |
