CUB5B000

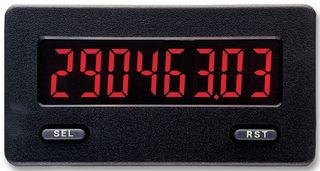

The CUB5B000 is a 8-digit CUB®5 miniature electronic Dual Counter and Rate Indicator with backlight display. It provides the user the ultimate in flexibility, from its complete user programming to the optional set-point control and communication capability. The meter can be programmed as a single or dual counter with rate indication capability. The display can be toggled either manually or automatically between the selected displays. When programmed as a dual counter has a separate scale factor and decimal points. In the counter/rate indicator mode, has its own scaling and decimal point read-outs in different engineering units. The internal batch counter can be used to count set-point output activations. The meter has two separate inputs which provide different functions depending on which operating mode is selected. Transmissive LCD with selectable red/green LED backlight, viewing angle optimized. Display colour change capability with output state when using an output module.

• Programmable scaling for count and rate
• Bidirectional counting, up/down control
• Quadrature sensing (up to 4 times resolution)
• Built-in batch counting capability
• Display colour change capability at set-point output
• Preset capability with optional output card
• Front panel programming
• Decimal points and scaling
• IP65/NEMA-4X Protection rating

Applications

Industrial, Metering

Warnings

Do not use this meter to directly command motors, valves or other actuators not equipped with safeguards. To do so can be potentially harmful to persons/equipment in the event of fault to the meter.
