RENESAS ISL78171EVAL1Z

Evaluation Board, ISL78171IRZ, Boost, DC, PWM, 4.5 V to 26.5 V Input, 32V/20mA Out, LED Driver

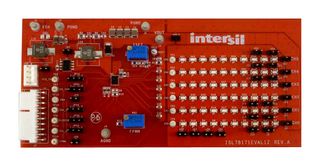

RENESAS ISL78171EVAL1Z
×

Image is for illustrative purposes only. Please refer to product description.

Manufacturer:
RENESAS RENESAS
Manufacturer Part No:
ISL78171EVAL1Z
Order Code:
4105468
  • Enter your custom part number in the textbox above
  • Maximum Part Numbers added.
    Delete older entries to add more.

Part Number Saved

Part Number Saved

Technical Datasheet:
ISL78171EVAL1Z   Datasheet
ECAD / MCAD
Supply Frame Models Link
See all Technical Docs

Product Overview

ISL78171EVAL1Z evaluation board is used to evaluate the ISL78171 6-channel, 50mA automotive LED driver with ultra-high dimming ratio and phase shift control. This board is populated with 60 LEDs in 6P10S (six parallel strings, each string consisting of 10 LEDs in series) configuration to simplify evaluation and testing. The device can function with or without an I²C controller. If it is required to use I²C control for the ISL78171EVAL1Z board, use a generic I²C interface adapter (not supplied with the evaluation board kit) for the purpose of communication. Application includes infotainment display LED backlighting, LCD monitor LED backlighting, field sequential RGB LED backlighting.
  • Input voltage range from 4.5V to 26.5V
  • Output voltage is 32V typical and 40V maximum
  • LED string current is 20mA typical
  • Board dimension is 140.33mm x 64.77mm
  • Integrated 40V boost converter, 6 precision current sinks, up to 50mA each
  • Current matching is ±0.7% typical
  • Dimming modes are DC, internal PWM, direct PWM, DC + Int/Dir PWM
  • Phase shift control for internal PWM dimming
  • 600kHz/800kHz/1.2MHz I2C selectable switching frequency
  • Dynamic headroom control

Product Information

Want to see similar products? Simply select your required attributes below and hit the button ×


:
20mA

Find similar products Choose and modify the attributes above to find similar products.

Technical Documents (3)

2 total stock globally Need more?

2 UK stock available for 5-8 business days delivery

Due to market conditions delivery times are for general guidance only and may be subject to change at short notice

$315.43 ( $362.74  Inc. GST)

Pricing is unavailable. Please contact customer services.

Price for:
Each
Multiple: 1 Minimum: 1
  • 1+
Quantity Price (Incl GST) Your Price (Incl GST)


1+ $315.43 ($362.74)
