RTK5RX1400C00000BJ

Target Board, RX140, RXv2, 32Bit

New

RENESAS RTK5RX1400C00000BJ
×

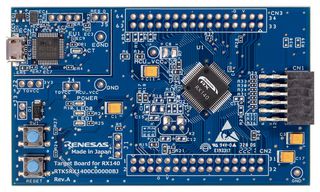

Image is for illustrative purposes only. Please refer to product description.

Manufacturer:
RENESAS RENESAS
Manufacturer Part No:
RTK5RX1400C00000BJ
Order Code:
3790259

Product Information

Want to see similar products? Simply select your required attributes below and hit the button ×


:
Renesas

:
32bit

:
RX

:
RXv2

:
-

:
RX140

:
Target Board RX140

:
-

Find similar products Choose and modify the attributes above to find similar products.

Technical Docs (1)

CAD Downloads

×

Terms and Conditions

CAD Models - Notice
CAD Models and drawings are provided to you on a revocable limited licence for your internal use only but remain the property of the manufacturer who retain all intellectual property rights and ownership. They are provided to assist you in decision making and as design guide but are not guaranteed to be error free, accurate or up to date and is not intended to be taken as advice.
Use of these CAD models and other options provided are downloaded and used entirely at your own risk and by continuing you confirm acceptance of the above.

Accept Cancel

Product Overview

Target board for RX140 is an evaluation board for initial deployment consideration that is both inexpensive and provides access to all of the RX140 signal pins. In addition, it is equipped with an emulator circuit, making it possible to develop applications immediately by connecting to a PC for debugging. It can also be used for initial evaluation of touch features by implementing the LPF capacitors required for touch operation.
  • R5F51403ADFM evaluation MCU (package: 64-pin LFQFP)
  • Supports multi-power supply: USB VBUS (5V) or LDO (3.3V) or external power supply (1.8V to 5.5V)
  • Emulator circuit
  • Micro-USB Type-B connector
  • Pmod™ connector standard implementation, supports Pmod interface types 2A (SPI), 3A (UART), 6 (I2C)
  • 1 user switch, 1 reset switch, 2 user LEDs, 1 power LED, 1 ACT LED
  • MCU current measurement header
  • Supports a capacitor connection for touch LPF
  • CE, UKCA conforming marking
  • Board size is 54mm x 90mm

15 total stock globally Need more?

15 UK stock for 5-8 days delivery

$40.90 ( $47.04  Inc. GST)

Pricing is unavailable. Please contact customer services.

Price for:
Each
Multiple: 1 Minimum: 1
Quantity Price (Incl GST) Your Price


1+ $40.90 ($47.04)
