| Manufacturer | RENESAS |
|---|---|
| Manufacturer Part No | US159-DA16200MEVZCopy |
| Manufacturer Standard Lead Time | 20 weeks |
| Order Code | 4050944 |
| Your Part Number | |
| Technical Datasheet |
Notify me when back in stock
| Quantity | Price (Incl GST) |
|---|---|
| 1+ | $57.670 ($66.3205) |
Product Information
| Manufacturer | RENESAS |
|---|---|
| Manufacturer Part No | US159-DA16200MEVZCopy |
| Manufacturer Standard Lead Time | 20 weeks |
| Order Code | 4050944 |
| Technical Datasheet | |
| Silicon Manufacturer | Renesas |
| Core Architecture | ARM |
| Core Sub-Architecture | Cortex-M4F+ |
| Silicon Core Number | DA16200 |
| Silicon Family Name | - |
| For Use With | Wi-Fi capability to any evaluation kit or MCU board equipped with a Pmod expansion capability |
| Kit Contents | Pmod Board DA16200 |
| Product Range | - |
| SVHC | No SVHC (25-Jun-2025) |
Product Overview

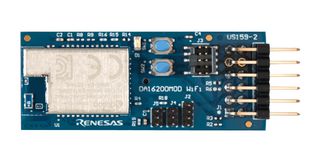

US159-DA16200MEVZ is an ultra low power Wi-Fi Pmod™ module enables the user to add Wi-Fi capability to any evaluation kit or microcontroller board equipped with a Pmod expansion capability. The board provides a standard Pmod™ Type 3A (Expanded UART) connection for the on-board Wi-Fi module. The US159-DA16200EVZ features a Type 3A Pmod™ connector and incorporates the DA16200MOD Module, based on the DA16200 System-on-Chip. Thanks to the standard connector and software support, the US159-DA16200EVZ is ideal for Renesas’ Quick-Connect IoT to rapidly create an IoT system.
- DA16200MOD module with integrated chip antenna
- Standardized type 3A Pmod™ connector supports expanded UART interface
- Optional battery operation with on-board CR1220 coin cell
- LED (D1) to aid in user software debug
- 10-pin 1.27mm pitch Arm cortex-debug connector (J2) for software development and debug support
Technical Specifications
| Silicon Manufacturer | Renesas |
|---|---|
| Core Sub-Architecture | Cortex-M4F+ |
| Silicon Family Name | - |
| Kit Contents | Pmod Board DA16200 |
| SVHC | No SVHC (25-Jun-2025) |
| Core Architecture | ARM |
|---|---|
| Silicon Core Number | DA16200 |
| For Use With | Wi-Fi capability to any evaluation kit or MCU board equipped with a Pmod expansion capability |
| Product Range | - |
Technical Docs (3)
Associated Products
2 Products Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | United States Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 84733020 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (25-Jun-2025) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .0035 |
