PCIE-098-02-F-D-TH

Card Edge Connector, PCIe, Dual Side, 1.57 mm, 98 Contacts, Through Hole Mount, Straight, Solder

PCIE-098-02-F-D-TH - Card Edge Connector, PCIe, Dual Side, 1.57 mm, 98 Contacts, Through Hole Mount, Straight, Solder

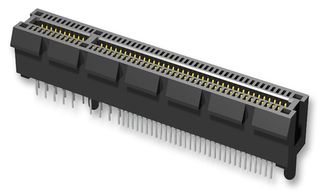

Image is for illustrative purposes only. Please refer to product description.

Manufacturer:
SAMTEC SAMTEC
Manufacturer Part No:
PCIE-098-02-F-D-TH
Order Code:
1753908
See all Technical Docs

Product Overview

The PCIE-098-02-F-D-TH is a 98-pole 1mm PCI Express® Card Connector with 50µinch (1.27µm) gold-plated bronze contacts. The PCIE series through-hole edge card connector is compatible with PCIEC and PCRF series connectors. While optimized for 50R applications, this connector with alternative signal/ground patterns may also perform well in certain 75R applications.
  • 2.2A Current rating
  • Supports one, four, eight and sixteen PCI Express® links
  • Accepts 0.062" (1.60mm) card

Applications

Industrial

Product Information

Want to see similar products? Simply select your required attributes below and hit the button ×


:
Dual Side

:
1.57mm

:
98 Contacts

:
Through Hole Mount

:
Straight

:
Solder

:
Phosphor Bronze

:
1µ" Gold Plated Contacts

:
Nylon 6.6 (Polyamide 6.6) Body

:
-

Find similar products Choose and modify the attributes above to find similar products.
