V23050A1005A533
Power Relay, 3PST-NO, 3SPST-NC, 5 VDC, 8 A, SR6 Series, Through Hole, Non Latching

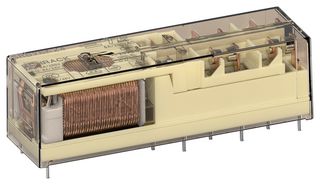

Image is for illustrative purposes only. Please refer to product description.
ManufacturerSCHRACK - TE CONNECTIVITY
Manufacturer Part NoV23050A1005A533
Order Code3764759
Product RangeSR6 Series
Also Known AsV23050A1005A533
Your Part Number
Technical Datasheet
47 total stock globally
Need more?
47 Delivery in 3-5 Business Days(UK stock)
| Quantity | Price (Incl GST) |
|---|---|
| 1+ | $47.660 ($54.809) |
| 5+ | $45.070 ($51.8305) |
| 10+ | $42.470 ($48.8405) |
| 20+ | $40.810 ($46.9315) |
| 50+ | $39.150 ($45.0225) |
Price for:Each
Minimum: 1
Multiple: 1
$47.66 ($54.81 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerSCHRACK - TE CONNECTIVITY
Manufacturer Part NoV23050A1005A533
Order Code3764759
Product RangeSR6 Series
Also Known AsV23050A1005A533
Technical Datasheet
Contact Configuration3PST-NO, 3SPST-NC
Coil Voltage5VDC
Contact Current8A
Product RangeSR6 Series
Relay MountingThrough Hole
Coil TypeNon Latching
Contact Voltage VAC250V
Relay TerminalsPC Pin
Contact Voltage VDC-
Contact MaterialSilver Tin Oxide
Coil Resistance20.8ohm
SVHCNo SVHC (21-Jan-2025)
Product Overview
- Force-guided, monostable, DC power relay
- 1000 to 1500mW coil power rating class
- 1200mW coil power rating DC
Technical Specifications
Contact Configuration
3PST-NO, 3SPST-NC
Contact Current
8A
Relay Mounting
Through Hole
Contact Voltage VAC
250V
Contact Voltage VDC
-
Coil Resistance
20.8ohm
Coil Voltage
5VDC
Product Range
SR6 Series
Coil Type
Non Latching
Relay Terminals
PC Pin
Contact Material
Silver Tin Oxide
SVHC
No SVHC (21-Jan-2025)
Technical Docs (2)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Czech Republic
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Czech Republic
Country in which last significant manufacturing process was carried out
Tariff No:85364900
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (21-Jan-2025)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.03
