4832.232

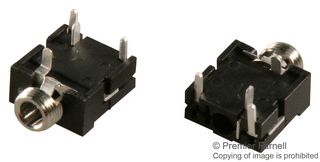

Phone Audio Connector, 3 Contacts, Jack, 3.5 mm, PCB Mount, Metal Body
Image is for illustrative purposes only. Please refer to product description.
843 total stock globally
500 more incoming. You can reserve stock now
843 Delivery in 3-5 Business Days(UK stock)
| Quantity | Price (Incl GST) |
|---|---|
| 1+ | $6.180 ($7.107) |
| 125+ | $5.860 ($6.739) |
| 625+ | $5.570 ($6.4055) |
Price for:Each
Minimum: 1
Multiple: 1
$6.18 ($7.11 inc GST)
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerSCHURTER
Manufacturer Part No4832.232
Order Code152204
Technical Datasheet
No. of Contacts3Contacts
GenderJack
Pin Diameter3.5mm
Connector MountingPCB Mount
Contact Plating-
Connector Body MaterialMetal Body
Product Range-
SVHCLead (21-Jan-2025)
Product Overview
The 4832.232 from Schurter is a 3 pole, 3.5mm shielded socket and silver plated PCB terminals. It is used for data and signal transfer.
- Diameter of 3.5mm
- PCB mounting, screw on mounting from rear side
- Lifetime of 5000 insertions
- Allowable operation temperature range from -20°C to 70°C
- Dielectric strength of 500VDC
- DC rating is 0.5A at 30VDC
- AC rating is 0.5A at 30VAC
- Insulation resistance <gt/> 100Mohm at 500VDC
- Audio entrances and exits
- Screened housing
Technical Specifications
No. of Contacts
3Contacts
Pin Diameter
3.5mm
Contact Plating
-
Product Range
-
Gender
Jack
Connector Mounting
PCB Mount
Connector Body Material
Metal Body
SVHC
Lead (21-Jan-2025)
Technical Docs (3)
Alternatives for 4832.232
3 Products Found
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Japan
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Japan
Country in which last significant manufacturing process was carried out
Tariff No:85369010
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Y-Ex
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:Lead (21-Jan-2025)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.004
