EFM32TG-STK3300
Development Kit, EFM32™ Tiny Gecko 32-Bit MCU, Advanced Energy Monitoring, SEGGER J-Link Debugger
Image is for illustrative purposes only. Please refer to product description.
Available to Order
Manufacturer Standard Lead Time: 11 week(s)
Notify me when back in stock
| Quantity | Price (Incl GST) |
|---|---|
| 1+ | $171.080 ($196.742) |
Price for:Each
Minimum: 1
Multiple: 1
$171.08 ($196.74 inc GST)
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
Product Overview

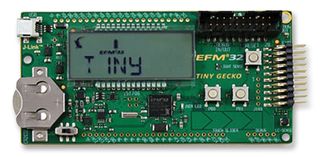

EFM32TG-STK3300 is a EFM32 Tiny Gecko Starter Kit for evaluation, prototyping and application development for the EFM32TG MCU family with the ARM Cortex-M3 CPU core. The starter kit contains sensors and peripherals demonstrating some of the MCU's many capabilities and can serve as a starting point for application development. The Tiny Gecko features an on-board SEGGER J-Link debugger and an Advanced Energy Monitoring system, allowing you to program, debug and perform real-time current profiling of your application without using external tools.
- EFM32TG840F32 MCU with 32kB flash and 4kB RAM
- Advanced Energy Monitoring system for precise current tracking
- Special hardware configuration for isolation of the MCU power domain
- Full feature USB debugger with debug out functionality
- 160 segment Energy Micro LCD
- 20 pin expansion header
- Breakout pads for easy access to I/O pins
- Powered by USB or CR2032 battery
- 2 user buttons, 1 user LED and a touch slider
- Ambient Light sensor and inductive-capacitive metal sensor
Applications
Metering, Security, Building Automation, Industrial, Medical
