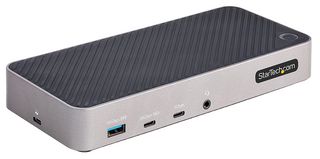

116U-USBC-DOCK

Versatile, fully featured docking station that allows you to create a high performance multi-monitor workstation with three high definition video outputs, USB hub, Power Delivery and Gigabit Ethernet connection. Utilising DisplayLink technology and DP Alt Mode, the dock ensures almost universal compatibility with Windows, Mac and Linux devices including Apple M1/M2 MacBooks, which are not natively capable of driving more than one external display.

• Connect two 4K 60Hz HDMI 2.0 and/or DisplayPort 1.2 (DP++) monitors via DisplayLink with a third 4K 30Hz HDMI display via DP Alt Mode
• Dock also provides five port USB hub, Gigabit LAN port, Power Delivery and 3.5mm headset port
• USB hub provides 3x USB-A ports (2x USB 3.2 Gen 1 5Gb/s, 1x Gen 2 10Gb/s with fast charging) and 2x USB-C (1x 5Gb/s, 1x 10Gb/s with fast charging)
• Two fast charging ports with BC 1.2 specification and Overcurrent Protection (OCP)
• Supports 100W USB Power Delivery with the included power adaptor to power and charge devices
• USB 3.2 Gen 2 10Gb/s interface
• Supports Thunderbolt 3/4 connections
• Gigabit wired LAN port with Wake on LAN (WoL) support
• Kensington lock slot for added security
• Universal compatibility: supports Windows 7/8/10/11, MacOS 10.11-10.15/11/12/13, Chrome OS, Android and Linux 3.5.x+ (LTS only)
• Dimensions (HxWxD): 30x190x85mm
• 3 Years manufacturer warranty

Contents

Docking station, AC adaptor (UK), USB cable and user guide

Notes

Note: Host device must support DP Alt Mode and Power Delivery 2.0 for full functionality.
