117B-USBC-MULTIPORT

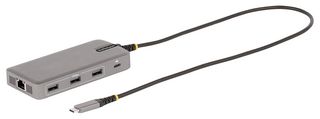

The 117B-USBC-MULTIPORT from Startech is a mini docking station that provides flexible multi-monitor output via MST; providing support for up to three extra displays (hardware dependent) with 4K UHD resolution. Equipped with dual HDMI & dual DisplayPort outputs for display options, the adaptor also provides a 3 port USB hub, Gigabit LAN port and a dedicated Power Delivery port. The adaptor features driverless, plug & play setup for intuitive installation.

• Provides 2x HDMI 2.0b, 2x DisplayPort 1.4, 3x USB-A, RJ45 LAN and USB-C PD port
• Supports resolutions up to 2x 4K @30Hz and 1x 4K @60Hz (3840x2160)
• USB 3.2 Gen 2 transfer speeds up to 10Gb/s
• Gigabit Ethernet port with PXE Boot and Wake-on-LAN support
• Charge your laptop and peripherals with up to 100W Power Delivery (15W reserved for adaptor)
• Compatible with Thunderbolt 3, Thunderbolt 4 and USB4 devices
• Adaptor will work with DP 1.2 Alt Mode at lower resolutions
• Built-in EMI shield to protect devices from interference
• Extra long 600mm cable length provides extended reach and reduces cable strain
• Supports Windows 8/10/11 and Chrome OS
• 3 Year manufacturer warranty

Contents

Multiport adaptor and user guide

Notes

Note: Host must support DP 1.4 Alt Mode with DSC. Intel 11th Gen or later required for maximum performance. Verify the maximum amount of displays your GPU supports, as some GPU chips are only capable of a maximum of 3 displays (laptop screen may be disabled if 3 are connected).
