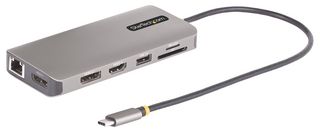

154B-USBC-MULTIPORT

The 154B-USBC-MULTIPORT from Startech is a USB-C multiport hub that provides flexible multi-monitor output via MST; providing support for up to three extra displays (hardware dependent) with 4K UHD resolution. Equipped with HDMI and dual DisplayPort outputs for display options, the adaptor also provides a 4 port USB hub, Gigabit LAN port, SD/MicroSD reader and a dedicated Power Delivery port. Driverless, plug & play installation allows you to create a feature-packed workstation wherever you need to work.

• Provides 2x DisplayPort 1.4, HDMI 2.0b, 4x USB-A, RJ45 LAN, SD/MicroSD and USB-C PD port
• Supports resolutions up to 2x 4K @60Hz and 1x 4K @30Hz (DP Alt Mode 1.4 with DSC)
• Four port USB hub for peripherals; 2x USB 3.2 Gen 1 (5Gb/s) and 2x USB 2.0
• Gigabit Ethernet port with PXE Boot and Wake-on-LAN support
• Access content from mobile devices and cameras with the built-in card reader, supports SD/SDHC/SDXC or MicroSD cards
• Charge your laptop and peripherals with up to 100W Power Delivery (15W reserved for adaptor)
• Compatible with Thunderbolt 3, Thunderbolt 4 and USB4 devices
• Adaptor will work with DP 1.2 Alt Mode at lower resolutions
• Sleek and durable aluminium housing
• Long 300mm cable length provides extended reach and reduces cable strain
• Supports Windows 8/10/11 and Chrome OS 78.x
• Dimensions (HxWxD): 16x130x56mm
• 3 Year manufacturer warranty

Contents

Multiport adaptor and user guide

Notes

Note: Host must support DP 1.4 Alt Mode with DSC & MST. Intel 11th Gen or later required for maximum performance. Verify the maximum amount of displays your GPU supports, as some GPU chips are only capable of a maximum of 3 displays (laptop screen may be disabled if 3 are connected).
