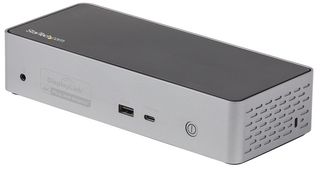

DK31C4DPPDUE

DK31C4DPPDUE is a USB-C Gen 2 10Gbps docking station turns your USB-C ® or Thunderbolt™ 3 MacBook Pro, Windows laptop, and Chromebook into a powerful workstation. It features everything you need, from quad HDMI or DisplayPort video outputs up to 4K 60 Hz to 10Gbps USB-C & USB-A downstream peripheral ports to 100W power delivery. This station with DP 1.2 and HDMI 2.0 HDR support, is a perfect choice for dual, triple, or quad monitor setup, supporting up to quad 4K 60Hz display output, with any combination of four DisplayPort or HDMI video interfaces, on USB-C Gen 2 laptops, MacBooks (including M1 based systems) and Windows-based Thunderbolt 3 laptops. Power and charge USB-C/Thunderbolt 3 workstation laptops & ultrabooks with 100W PD. Higher power delivery, more than other USB-C 10Gbps quad monitor docks. It comes with plenty of security features a K-slot for a Kensington style laptop lock and holes to mount the dock on the desk or wall and includes a USB-IF Certified 1m USB-C cable.

• 4K support and 4 displays supported, Supports fast-charge port(s), Wake On Lan, PXE
• USB 3.2 Gen 2 interface, USB 3.2 Gen 1 and USB 3.2 Gen 2 bus type
• Compatible lock slot: Kensington standard slot (K-Slot)
• Type and rate: USB 3.2 Gen 1 - 5Gbit/s, USB 3.2 Gen 2 - 10Gbit/s
• Power On/Off LED indicator
• 10Gbps maximum data transfer rate
• Input voltage: 110V-240V AC, output voltage: 20V DC and output current: 8.5A
• OS compatibility: Windows 10, 11, 11 ARM (64 bit), Mac OS 10.14-15.0, Chrome OS 61.x
• 3 years warranty
• Operating temperature range from 0°C to 50°C
• Supports Windows 10/11, macOS 10.14-12.0 & Chrome OS 61.x

Contents

Docking station, Host cable, Universal power adapter, 2 - power adapter cords (UK & EU), User manual.

Notes

Not all USB-C ports support the full functionality of the USB Type-C standard. Ensure that your host USB-C port supports USB Power Delivery.
