60.7030-21 5M

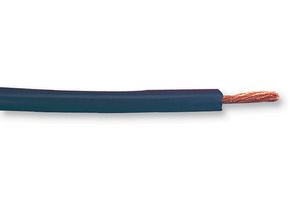

Wire, Stranded, Flexivolt® 2V, Hi Flex, PVC, Black, 17 AWG, 258 x 0.07mm, 5 m
| Manufacturer | STAUBLI |
|---|---|
| Manufacturer Part No | 60.7030-21 5MCopy |
| Manufacturer Standard Lead Time | 12 weeks |
| Order Code | 611384 |
| Your Part Number | |
| Technical Datasheet |
6 more incoming. You can reserve stock now
| Quantity | Price (Incl GST) |
|---|---|
| 1+ | $54.470 ($62.6405) |
| 5+ | $53.390 ($61.3985) |
Product Information
| Manufacturer | STAUBLI |
|---|---|
| Manufacturer Part No | 60.7030-21 5MCopy |
| Manufacturer Standard Lead Time | 12 weeks |
| Order Code | 611384 |
| Technical Datasheet | |
| Jacket Material | PVC |
| Jacket Colour | Black |
| Wire Gauge | 17AWG |
| No. of Max Strands x Strand Size | 258 x 0.07mm |
| Reel Length (Metric) | 5m |
| Reel Length (Imperial) | 16ft |
| Operating Temperature Max | 70°C |
| Conductor Area CSA | 1mm² |
| Voltage Rating | 1.5kV |
| Conductor Material | Copper |
| External Diameter | 3.9mm |
| Approval Specification | - |
| Product Range | - |
| SVHC | No SVHC (21-Jan-2025) |
Product Overview
The 60.7030-21 5M is a 5m Black Multistrand Wire with 17AWG conductor, PVC jacket and copper conductor. This FLEXI-2V insulated wire having good electrical properties with medium to good flexibility and good age resistance and medium to good UV resistance. This Flexivolt-2V wire is used in Internal wiring of mobile components under moderate mechanical stress. Highly flexible connecting leads for low-voltage applications in the laboratory field. Highly flexible stranded wire with reinforced, double-layer insulation for the highest safety (inside natural, outside coloured). Damage to the outer layer of insulation can be more easily recognised due to the different colour of the underlying layer.
- CPR: Not Yet Qualified
- Highly flexible stranded wire with reinforced, double-layer insulation
- 70 shore A Hardness
- 15N/mm² Tear strength
- -10 to +70°C Temperature range
Applications
Industrial
Technical Specifications
| Jacket Material | PVC |
|---|---|
| Wire Gauge | 17AWG |
| Reel Length (Metric) | 5m |
| Operating Temperature Max | 70°C |
| Voltage Rating | 1.5kV |
| External Diameter | 3.9mm |
| Product Range | - |
| Jacket Colour | Black |
|---|---|
| No. of Max Strands x Strand Size | 258 x 0.07mm |
| Reel Length (Imperial) | 16ft |
| Conductor Area CSA | 1mm² |
| Conductor Material | Copper |
| Approval Specification | - |
| SVHC | No SVHC (21-Jan-2025) |
Technical Docs (2)
Associated Products
6 Products Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Germany Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85444999 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (21-Jan-2025) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .12 |
