EVSPIN32F0602S1

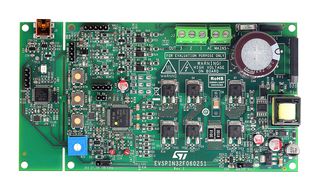

EVAL BOARD, 3 PHASE BLDC & PMSM MOTOR

STMICROELECTRONICS EVSPIN32F0602S1

Image is for illustrative purposes only. Please refer to product description.

Manufacturer Part No:
EVSPIN32F0602S1
Order Code:
3387314
Technical Datasheet:
EVSPIN32F0602S1   Datasheet
See all Technical Docs

Product Overview

The 3-phase inverter is based on the STSPIN32F0602 controller which embeds a 3‑phase 600V gate driver and a Cortex®‑M0 STM32 MCU. The power stage features STD18N65M5 MOSFET but can be populated with any IGBT or Power MOSFET in DPAK or powerFLAT 8x8 HV package. The board has a single shunt sensing topology and both the field oriented control (FOC) and sensored or sensorless 6‑step control can be implemented. This allows driving permanent magnet synchronous motors (PMSMs) and brushless DC (BLDC) motors. The evaluation board is compatible with a wide range input voltage from 50V to 280V DC/AC and includes a power supply stage with the VIPER06XS in flyback configuration to generate +15V and +3.3V supply voltage required by the application. Typical applications include home and industrial refrigerators compressors, industrial drives, pumps, fans, air conditioning compressors & fans, corded power tools/garden tools, home appliances and industrial automation applications.
  • Embedded ST-LINK/V2-1
  • Overcurrent threshold set to 8.5A peak
  • Bus voltage sensing
  • Smart shutdown overcurrent protection
  • Digital hall sensors and encoder input
  • 15V VCC and 3.3V VDD supplies
  • Easy user interface with buttons and trimmer
