STEVAL-IDP003V1
Evaluation Board, L6362A IO-Link Transceiver Device IC, STM32L071CZ MCU, Multiple Sensors
| Manufacturer | STMICROELECTRONICS |
|---|---|
| Manufacturer Part No | STEVAL-IDP003V1Copy |
| Manufacturer Standard Lead Time | 29 weeks |
| Order Code | 2774146 |
| Your Part Number | |
| Technical Datasheet |
Notify me when back in stock
| Quantity | Price (Incl GST) |
|---|---|
| 1+ | $194.100 ($223.215) |
Product Information
| Manufacturer | STMICROELECTRONICS |
|---|---|
| Manufacturer Part No | STEVAL-IDP003V1Copy |
| Manufacturer Standard Lead Time | 29 weeks |
| Order Code | 2774146 |
| Technical Datasheet | |
| Kit Application Type | Sensor |
| Application Sub Type | IO-Link Transceiver |
| Silicon Manufacturer | STMicroelectronics |
| Silicon Core Number | STM32L071CZ, L6362A |
| Product Range | - |
| Kit Contents | EV BOARD STEVAL-IDP003V1D, DAUGHTER BOARDS STEVAL-IDP003V1T/IDP003V1TV/IDP003V1A/IDP003V1P |
| SVHC | No SVHC (25-Jun-2025) |
Product Overview

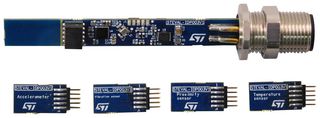

STEVAL-IDP003V1 kit includes the STEVAL-IDP003V1D evaluation board based on the L6362A IO-Link device transceiver and the STM32L071CZ microcontroller for data processing, as well as the following sensor daughter boards: STEVAL-IDP003V1T hosting the STTS751 temperature sensor, STEVALIDP003V1V hosting the IIS2DH MEMS sensor, STEVAL-IDP003V1A hosting the IIS328DQ MEMS sensor and STEVAL-IDP003V1P hosting the VL6180X proximity sensor. The evaluation kit is equipped with an industrial M12 connector (required by the standard) for connection with a single host IC using a 20-meter cable. The wire is a normal three-pole wire: one for IO-Link data, one for the L+ line (positive supply voltage pole) and one for the L- line (negative supply voltage pole). The layout is designed to meet IEC61000-4-2/4 and EN60947 requirements for the industrial sector.
- Main supply voltage is 32V maximum
- IO-Link PHY using the L6362A device for data communication with host unit
- DC-DC converter and linear regulator on board
- Integrated reverse polarity protection on L6362A Ics
- 400KHz I²C communication
- Multi-sensor connection
- PCB designed to accept real industrial sensors (8 mm x 70 mm, with 0.8mm thickness)
- Designed to meet IEC industrial standard requirements
