STEVAL-MKI169V1
Adapter Board, MEMS Motion Sensor, Three-Axis Digital Output Gyroscope, STEVAL-MKI109V2
Notify me when back in stock
| Quantity | Price (Incl GST) |
|---|---|
| 1+ | $32.750 ($37.6625) |
| 5+ | $32.100 ($36.915) |
Product Information
Product Overview

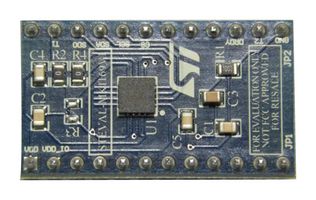

STEVAL-MKI169V1 is a I3G4250D adapter board for a standard DIL 24 socket. It is designed to facilitate the evaluation of MEMS devices in the I3G4250D product family. The board offers an effective solution for fast system prototyping and device evaluation directly within the user’s own application. The STEVALMKI169V1 can be plugged into a standard DIL 24 socket. The adapter provides the complete I3G4250D pin-out and comes ready-to-use with the required decoupling capacitors on the VDD power supply line. This adapter is supported by the STEVAL-MKI109V2 motherboard which includes a high performance 32bit microcontroller functioning as a bridge between the sensor and a PC, on which it is possible to use the downloadable graphical user interface (Unico GUI), or dedicated software routines for customized applications.
- Complete I3G4250D pinout for a standard DIL 24 socket
- Fully compatible with the STEVALMKI109V2 motherboard
Technical Specifications
Adapter Board
-
STEVAL-MKI109V2 Motherboard
No SVHC (21-Jan-2025)
Technical Docs (2)
Associated Products
3 Products Found
Legislation and Environmental
Country in which last significant manufacturing process was carried outCountry of Origin:Italy
Country in which last significant manufacturing process was carried out
RoHS
RoHS
Product Compliance Certificate
