T2035H-6I
Triac, 600 V, 20 A, TO-220AB, 1 V, 200 A, 35 mA

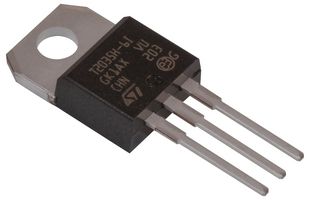

Image is for illustrative purposes only. Please refer to product description.
581 total stock globally
Need more?
581 Delivery in 3-5 Business Days(UK stock)
| Quantity | Price (Incl GST) |
|---|---|
| 1+ | $3.940 ($4.531) |
| 10+ | $1.990 ($2.2885) |
| 100+ | $1.800 ($2.070) |
| 500+ | $1.440 ($1.656) |
| 1000+ | $1.360 ($1.564) |
| 5000+ | $1.290 ($1.4835) |
Price for:Each
Minimum: 1
Multiple: 1
$3.94 ($4.53 inc GST)
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerSTMICROELECTRONICS
Manufacturer Part NoT2035H-6I
Order Code1689360
Technical Datasheet
Peak Repetitive Off State Voltage600V
On State RMS Current20A
Triac Case StyleTO-220AB
Gate Trigger Voltage Max1V
Peak Non Repetitive Surge Current200A
Holding Current Max35mA
No. of Pins-
Operating Temperature Max150°C
Peak On State Voltage1.5V
Thyristor MountingThrough Hole
Product Range-
MSL-
SVHCNo SVHC (21-Jan-2025)
Product Overview
20A - 600V H-series snubberless triac especially designed to operate in high power density or universal motor applications such as vacuum cleaner and washing machine drum motor.
- Medium current triac
- 150°C max. Tj turn-off commutation
- Low thermal resistance with clip bonding
- Very high 3 quadrant commutation capabilities
- UL certified (ref. file E81734)
Technical Specifications
Peak Repetitive Off State Voltage
600V
Triac Case Style
TO-220AB
Peak Non Repetitive Surge Current
200A
No. of Pins
-
Peak On State Voltage
1.5V
Product Range
-
SVHC
No SVHC (21-Jan-2025)
On State RMS Current
20A
Gate Trigger Voltage Max
1V
Holding Current Max
35mA
Operating Temperature Max
150°C
Thyristor Mounting
Through Hole
MSL
-
Technical Docs (2)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Tariff No:85413000
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (21-Jan-2025)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.0023
