Image is for illustrative purposes only. Please refer to product description.

| Manufacturer | SWITCHCRAFT/CONXALL |
|---|---|
| Manufacturer Part No | 722ACopy |
| Manufacturer Standard Lead Time | 11 weeks |
| Order Code | 1608730 |
| Your Part Number | |
| Technical Datasheet |
1,234 total stock globally
Need more?
16 Delivery in 10-14 Business Days(US stock)
1,218 Delivery in 3-5 Business Days(UK stock)
| Quantity | Price (Incl GST) |
|---|---|
| 1+ | $7.730 ($8.8895) |
| 10+ | $7.320 ($8.418) |
| 100+ | $6.210 ($7.1415) |
| 250+ | $5.760 ($6.624) |
| 500+ | $5.550 ($6.3825) |
| 1000+ | $5.120 ($5.888) |
Price for:Each
Minimum: 1
Multiple: 1
$7.73 ($8.89 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | SWITCHCRAFT/CONXALL |
|---|---|
| Manufacturer Part No | 722ACopy |
| Manufacturer Standard Lead Time | 11 weeks |
| Order Code | 1608730 |
| Technical Datasheet | |
| Gender | Jack |
| Current Rating | 5A |
| Pin Diameter | 2mm |
| Barrel Length | - |
| Connector Mounting | Panel Mount |
| Contact Termination Type | Solder |
| Barrel Inner Diameter | - |
| Barrel Outer Diameter | - |
| Voltage Rating | 30VDC |
| Product Range | - |
| SVHC | No SVHC (27-Jun-2024) |
Product Overview

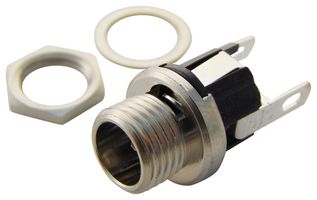

The 722A from Switchcraft is a DC power jack with 2mm diameter pin and solder lugs termination. This version has threaded bushings to allow use of both standard and locking power plugs.
- Current rating is 5A at 12VDC
- Thermoplastic housing
- Initial contact resistance is 10mohm
- Maximum dielectric withstanding voltage is 500VAC
- Plated copper alloy terminals and bushing
- Rigid plastic insulator
Applications
Industrial, Power Management, Portable Devices
Technical Specifications
| Gender | Jack |
|---|---|
| Pin Diameter | 2mm |
| Connector Mounting | Panel Mount |
| Barrel Inner Diameter | - |
| Voltage Rating | 30VDC |
| SVHC | No SVHC (27-Jun-2024) |
| Current Rating | 5A |
|---|---|
| Barrel Length | - |
| Contact Termination Type | Solder |
| Barrel Outer Diameter | - |
| Product Range | - |
Technical Docs (3)
Alternatives for 722A
3 Products Found
Associated Products
1 Product Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | United States Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85366990 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Y-Ex RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (27-Jun-2024) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .004083 |
