1563111-1
Connector Backshell, Backshell, AMP MCP Receptacle & Tab Housings, 180°

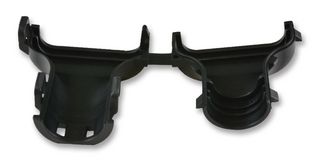

Image is for illustrative purposes only. Please refer to product description.
ManufacturerTE CONNECTIVITY
Manufacturer Part No1563111-1Copy
Manufacturer Standard Lead Time16 weeks
Order Code2468597
Product RangeMCP
Your Part Number
1,644 total stock globally
Need more?
1,644 Delivery in 3-5 Business Days(UK stock)
| Quantity | Price (Incl GST) |
|---|---|
| 1+ | $2.850 ($3.2775) |
| 10+ | $2.440 ($2.806) |
| 100+ | $2.070 ($2.3805) |
| 500+ | $1.950 ($2.2425) |
| 1000+ | $1.810 ($2.0815) |
| 2500+ | $1.720 ($1.978) |
Price for:Each
Minimum: 1
Multiple: 1
$2.85 ($3.28 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerTE CONNECTIVITY
Manufacturer Part No1563111-1Copy
Manufacturer Standard Lead Time16 weeks
Order Code2468597
Product RangeMCP
Technical Datasheet
Accessory TypeBackshell
For Use WithAMP MCP Receptacle & Tab Housings
Connector Shell Size-
Cable Exit Angle180°
Connector Body MaterialNylon 6.6 (Polyamide 6.6) Body
Product RangeMCP
SVHCNo SVHC (04-Feb-2026)
Product Overview
The 1563111-1 is a black 180° (in-line) Cover made of polyamide (PA) with strain relief. It is ideal for heavy duty sealed connector series, AMP MCP housings and connectors. Vertical adapter for NW13mm diameter corrugated tubing.
- UL94HB Flammability rating
- -40 to 120°C Operating temperature range
Applications
Commercial, Industrial, Automotive
Technical Specifications
Accessory Type
Backshell
Connector Shell Size
-
Connector Body Material
Nylon 6.6 (Polyamide 6.6) Body
SVHC
No SVHC (04-Feb-2026)
For Use With
AMP MCP Receptacle & Tab Housings
Cable Exit Angle
180°
Product Range
MCP
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Austria
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Austria
Country in which last significant manufacturing process was carried out
Tariff No:85389099
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (04-Feb-2026)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.005065
