1776293-6
Panel Mount Barrier Terminal Block, 1 Row, 6 Ways, 22 AWG, 12 AWG, 8 mm, 30 A

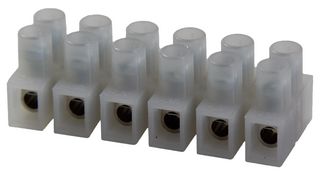

Image is for illustrative purposes only. Please refer to product description.
ManufacturerTE CONNECTIVITY
Manufacturer Part No1776293-6
Order Code3399487
Your Part Number
Technical Datasheet
4,954 total stock globally
Need more?
4954 Delivery in 3-5 Business Days(UK stock)
| Quantity | Price (Incl GST) |
|---|---|
| 1+ | $11.300 ($12.995) |
| 10+ | $8.020 ($9.223) |
| 100+ | $5.960 ($6.854) |
| 250+ | $5.440 ($6.256) |
| 500+ | $5.140 ($5.911) |
| 1000+ | $5.020 ($5.773) |
Price for:Each
Minimum: 1
Multiple: 1
$11.30 ($13.00 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerTE CONNECTIVITY
Manufacturer Part No1776293-6
Order Code3399487
Technical Datasheet
No. of Rows1 Row
No. of Positions6Ways
Wire Size AWG Min22AWG
Wire Size AWG Max12AWG
Pitch Spacing8mm
Rated Current30A
Rated Voltage250V
Product Range-
SVHCLead (21-Jan-2025)
Product Overview
- TSB230 series stainless steel terminal block wire protector
- Polyamide 6 housing, natural (off white) color, brass, tin plated tubular contact
- UL94V-2 flammability, steel, M3 screw
- Pitch (terminal spacing) is 8mm
- Wire strip length is 5mm, number of positions are 6
- Operating voltage is 250V
- Maximum current is 30A
- Wire range from 12-26AWG
- Dielectric withstand is 3000V, length is 46mm
- Continuous working temperature range from -35˚C to +100˚C
Technical Specifications
No. of Rows
1 Row
Wire Size AWG Min
22AWG
Pitch Spacing
8mm
Rated Voltage
250V
SVHC
Lead (21-Jan-2025)
No. of Positions
6Ways
Wire Size AWG Max
12AWG
Rated Current
30A
Product Range
-
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Germany
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Germany
Country in which last significant manufacturing process was carried out
Tariff No:85369010
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Y-Ex
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:Lead (21-Jan-2025)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.013608
