1932258-1

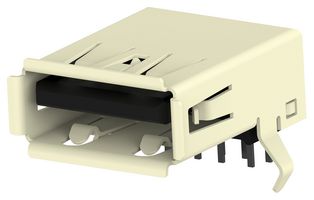

USB Connector, USB Type A, USB 3.0, Receptacle, 9 Ways, Through Hole Mount, Right Angle
Image is for illustrative purposes only. Please refer to product description.
1,071 total stock globally
Need more?
1071 Delivery in 3-5 Business Days(UK stock)
| Quantity | Price (Incl GST) |
|---|---|
| 1+ | $11.480 ($13.202) |
| 10+ | $10.770 ($12.3855) |
| 50+ | $10.620 ($12.213) |
| 100+ | $10.050 ($11.5575) |
| 288+ | $8.520 ($9.798) |
| 576+ | $8.320 ($9.568) |
| 864+ | $8.200 ($9.430) |
Price for:Each
Minimum: 1
Multiple: 1
$11.48 ($13.20 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerTE CONNECTIVITY
Manufacturer Part No1932258-1
Order Code3399379
Technical Datasheet
USB Connector TypeUSB Type A
USB StandardUSB 3.0
No. of Positions9Ways
Connector MountingThrough Hole Mount
OrientationRight Angle
Contact MaterialCopper Alloy
Contact PlatingGold Plated Contacts
Product Range-
SVHCNo SVHC (21-Jan-2025)
Product Overview
- Full size USB 3.0 connector
- A type receptacle, 1 ports, TH, RA orientation, Std, USB 3.0 Type-A USB, 9 no. of positions
- Tin shell plating material, standard connector profile, bright shell plating finish
- Gold or gold flash over palladium nickel contact mating area plating material
- Contact mating area plating material thickness is 0.76µm [ 29.92µin], USB 3.0 industry standard
- 1.8A maximum contact current rating, 2.3mm [0.091in] termination post and tail length
- Board mount connector mounting type, blue housing colour, thermoplastic housing material
- Right angle body orientation, 1.6mm PCB thickness (Recommended)
- 5000 maximum mating cycle, power and signal circuit application, UL 94HB UL flammability rating
- Operating temperature range from -55 to 105°C
Technical Specifications
USB Connector Type
USB Type A
Gender
Receptacle
Connector Mounting
Through Hole Mount
Contact Material
Copper Alloy
Product Range
-
USB Standard
USB 3.0
No. of Positions
9Ways
Orientation
Right Angle
Contact Plating
Gold Plated Contacts
SVHC
No SVHC (21-Jan-2025)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Tariff No:85366930
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (21-Jan-2025)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.00244
