2013595-1

Modular Connector, RJ45 Plug, 1 x 1 (Port), 8P8C, Cat5e, Through Hole Mount

TE CONNECTIVITY 2013595-1

Image is for illustrative purposes only. Please refer to product description.

Manufacturer Part No:
2013595-1
Order Code:
1816581
Technical Datasheet:
2013595-1   Datasheet
See all Technical Docs

Product Overview

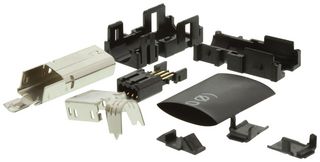

The 2013595-1 is a 8-contact type-1 industrial mini I/O Plug Kit with copper alloy contacts, glass-filled polyamide housing and nickel-plated copper alloy shield. The industrial mini I/O connector system is a small, compact, latching, wire-to-board I/O interface is suitable for the stringent demands of an industrial device. It is one quarter the size of a conventional RJ45 plug and is designed with two points of contact for increased reliability in high vibration environments. The unique latching system protects the plug from pull out during high vibration and accidental bumping. The system is most commonly used as an RJ45 replacement. It consists of 8 individual circuits that accommodate I/O signals.
  • 30V Rated voltage
  • 0.5A Current rating
  • 1500 Cycles durability
  • UL94V-0 Flammability rating

Applications

Industrial, Automation & Process Control, Robotics

Product Information

Want to see similar products? Simply select your required attributes below and hit the button ×


:
RJ45 Plug

:
1 x 1 (Port)

:
8P8C

:
Cat5e

:
-

:
Through Hole Mount

:
Right Angle

:
Shielded

:
Without Magnetics

:
Without LED

:
Without Light Pipe

:
-

Find similar products Choose and modify the attributes above to find similar products.
