2301838-2
D Sub Connector, DB9, Standard, Receptacle, 9 Contacts, DE, Solder

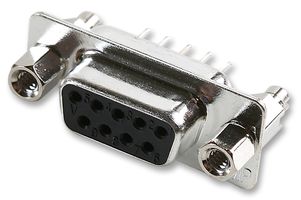

Image is for illustrative purposes only. Please refer to product description.
ManufacturerTE CONNECTIVITY
Manufacturer Part No2301838-2Copy
Manufacturer Standard Lead Time6 weeks
Order Code2857977
Your Part Number
28,022 total stock globally
Need more?
28,022 Delivery in 3-5 Business Days(UK stock)
| Quantity | Price (Incl GST) |
|---|---|
| 1+ | $6.480 ($7.452) |
| 10+ | $5.500 ($6.325) |
| 100+ | $4.710 ($5.4165) |
| 250+ | $4.490 ($5.1635) |
| 500+ | $4.360 ($5.014) |
| 1000+ | $4.160 ($4.784) |
Price for:Each
Minimum: 1
Multiple: 1
$6.48 ($7.45 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerTE CONNECTIVITY
Manufacturer Part No2301838-2Copy
Manufacturer Standard Lead Time6 weeks
Order Code2857977
Technical Datasheet
D Sub Connector TypeStandard
Product Range-
No. of Contacts9Contacts
D Sub Shell SizeDE
Contact Termination TypeSolder
Connector MountingThrough Hole Mount
Contact MaterialPhosphor Bronze
Contact PlatingGold Plated Contacts
Connector Body MaterialSteel Body
SVHCNo SVHC (21-Jan-2025)
Product Overview
2301838-2 is a dual row, 9 position PCB D-sub receptacle connector.
- Vertical PCB orientation
- Straight contact shape & form
- 1.5A contact current rating (max)
- With PCB mount retention
- Boardlock PCB mount retention type
- With mating retention
- 4-40 screwlock mating retention type
- Operating temperature range from -55 to 105°C [ -67 to 221°F ]
Technical Specifications
D Sub Connector Type
Standard
Product Range
-
D Sub Shell Size
DE
Connector Mounting
Through Hole Mount
Contact Plating
Gold Plated Contacts
SVHC
No SVHC (21-Jan-2025)
Gender
Receptacle
No. of Contacts
9Contacts
Contact Termination Type
Solder
Contact Material
Phosphor Bronze
Connector Body Material
Steel Body
Alternatives for 2301838-2
1 Product Found
Associated Products
1 Product Found
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Tariff No:85366930
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Y-Ex
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (21-Jan-2025)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.005
