BTH3-19-13-1-B-SE
Connector Backshell, Band Strap Backshell, MIL-DTL-38999 Series III & IV Circular Connectors, 19
Image is for illustrative purposes only. Please refer to product description.
ManufacturerTE CONNECTIVITY
Manufacturer Part NoBTH3-19-13-1-B-SECopy
Order Code3499659
Product RangeBT
Also Known AsAAF7075-00
Your Part Number
Available to Order
register your interest here
| Quantity | Price (Incl GST) |
|---|---|
| 1+ | $1,070.370 ($1,230.9255) |
| 5+ | $936.560 ($1,077.044) |
| 10+ | $776.020 ($892.423) |
| 25+ | $695.740 ($800.101) |
| 50+ | $642.220 ($738.553) |
| 100+ | $629.380 ($723.787) |
Price for:Each
Minimum: 1
Multiple: 1
$1,070.37 ($1,230.93 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerTE CONNECTIVITY
Manufacturer Part NoBTH3-19-13-1-B-SECopy
Order Code3499659
Product RangeBT
Also Known AsAAF7075-00
Technical Datasheet
Accessory TypeBand Strap Backshell
Connector Shell Size19
Cable Exit Angle90°
Connector Body MaterialAluminium Alloy Body
Product RangeBT
SVHCCadmium (04-Feb-2026)
Product Overview

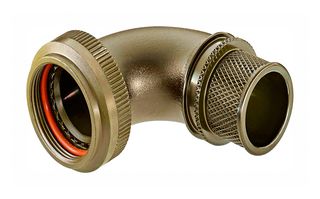

BTH3 series swept elbow backshell is designed with a smooth internal bore and a continuous bend radius. Available in the band termination (BT) style, these backshells offer up to a 20% weight savings over traditional backshells.
- Provides a smooth 900 cable termination option for optic and standard cables
- Aluminium alloy with cadmium olive drab over electroless nickel plating
- Meets AS85049 category 3B sealing requirements
- Simple and fast termination solutions
- Spin coupling nut allows for easy repair
- Backshells can provide strain relief and cable support to help prevent bending or overflexing
- Overall 360° screening against
- EMI/RFI interference
Technical Specifications
Accessory Type
Band Strap Backshell
Connector Shell Size
19
Connector Body Material
Aluminium Alloy Body
SVHC
Cadmium (04-Feb-2026)
For Use With
MIL-DTL-38999 Series III & IV Circular Connectors
Cable Exit Angle
90°
Product Range
BT
Technical Docs (2)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Great Britain
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Great Britain
Country in which last significant manufacturing process was carried out
Tariff No:85366990
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:No
RoHS Phthalates Compliant:No
SVHC:Cadmium (04-Feb-2026)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.032205
