FS-06
FLOW SWITCH, SPST, 1A, -30 TO 100DEG C

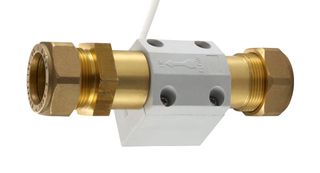

Image is for illustrative purposes only. Please refer to product description.
ManufacturerTE CONNECTIVITY
Manufacturer Part NoFS-06
Order Code1006771
Also Known As86514-000 , FFS-06
Your Part Number
Technical Datasheet
66 total stock globally
Need more?
66 Delivery in 3-5 Business Days(UK stock)
| Quantity | Price (Incl GST) |
|---|---|
| 1+ | $193.150 ($222.1225) |
| 5+ | $185.390 ($213.1985) |
| 10+ | $181.800 ($209.070) |
| 25+ | $178.170 ($204.8955) |
Price for:Each
Minimum: 1
Multiple: 1
$193.15 ($222.12 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerTE CONNECTIVITY
Manufacturer Part NoFS-06
Order Code1006771
Also Known As86514-000 , FFS-06
Technical Datasheet
Product Overview
The FS-06 is a Flow Switch with rugged brass housing, NORYL shuttle and ruthenium SPST contact. This flow switch features as minimum pressure drop, operates from a small head of water and vertical mount +/15. Suitable for water and air flow switching, mains water control, power shower, central heating systems, circulation pump protection and cooling systems.
- Easy to install
- Vertical, flow upwards
- 22mm Compression fitting
- IP65 Protection rating
- -30 to 100°C Operating temperature range
Applications
Sensing & Instrumentation, Motor Drive & Control, HVAC
Technical Docs (2)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Great Britain
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Great Britain
Country in which last significant manufacturing process was carried out
Tariff No:90261089
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.349
