15010

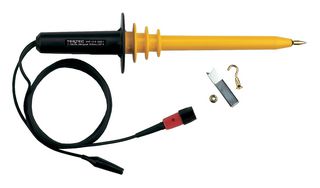

Oscilloscope Probe, High-Voltage Divider, 40 MHz, 10 kV, 1000:1, Analog or Digital Oscilloscopes
Image is for illustrative purposes only. Please refer to product description.
ManufacturerTESTEC
Manufacturer Part No15010
Order Code3373859
Also Known AsTT-HVP 15B
Your Part Number
Technical Datasheet
4 total stock globally
Need more?
4 Delivery in 3-5 Business Days(UK stock)
| Quantity | Price (Incl GST) |
|---|---|
| 1+ | $669.190 ($769.5685) |
Price for:Each
Minimum: 1
Multiple: 1
$669.19 ($769.57 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerTESTEC
Manufacturer Part No15010
Order Code3373859
Also Known AsTT-HVP 15B
Technical Datasheet
Oscilloscope Probe FunctionHigh-Voltage Divider
Bandwidth40MHz
Input Voltage Max10kV
Test Probe Attenuation1000:1
For Use WithAnalog or Digital Oscilloscopes
Product Range-
SVHCNo SVHC (25-Jun-2025)
Product Overview
TT-HVP 15 B high-voltage probe for use with analogue or digital oscilloscope with an impedance of 1Mohm. The probe has a divider ratio of 1000:1, which extends the voltage range up to 20KV DC from 7KV / AC. The connection is via a 2meter long test lead with BNC connectors. A separate ground lead with alligator clip is available.
- Bandwidth 40MHz
- Meets EN61010-031:2015 standard
Technical Specifications
Oscilloscope Probe Function
High-Voltage Divider
Input Voltage Max
10kV
For Use With
Analog or Digital Oscilloscopes
SVHC
No SVHC (25-Jun-2025)
Bandwidth
40MHz
Test Probe Attenuation
1000:1
Product Range
-
Technical Docs (2)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Taiwan
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Taiwan
Country in which last significant manufacturing process was carried out
Tariff No:90309000
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (25-Jun-2025)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.55
