TBD62786AFNG(Z,EL)
Peripheral Driver, 50 V /-0.5 A out, 8 Outputs, SSOP, -40 °C to 85 °C

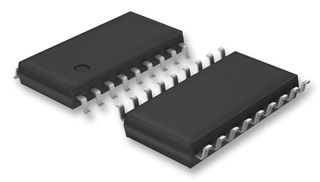

Image is for illustrative purposes only. Please refer to product description.
ManufacturerTOSHIBA
Manufacturer Part NoTBD62786AFNG(Z,EL)
Order Code4178792
Also Known AsTBD62786AFNG, TBD62786AFNG(Z
Technical Datasheet
1,990 total stock globally
Need more?
1990 Delivery in 3-5 Business Days(UK stock)
| Quantity | Price (Incl GST) |
|---|---|
| 1+ | $3.680 ($4.232) |
| 10+ | $2.580 ($2.967) |
| 50+ | $2.390 ($2.7485) |
| 100+ | $2.210 ($2.5415) |
| 250+ | $2.060 ($2.369) |
| 500+ | $1.910 ($2.1965) |
| 1000+ | $1.780 ($2.047) |
| 2500+ | $1.750 ($2.0125) |
Price for:Each (Supplied on Cut Tape)
Minimum: 1
Multiple: 1
$3.68 ($4.23 inc GST)
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerTOSHIBA
Manufacturer Part NoTBD62786AFNG(Z,EL)
Order Code4178792
Also Known AsTBD62786AFNG, TBD62786AFNG(Z
Technical Datasheet
Supply Voltage Min2V
Supply Voltage Max50V
No. of Outputs8Outputs
Output Voltage50V
Output Current-500mA
Driver Case StyleSSOP
Product Range-
Product Overview
TBD62786AFNG(Z,EL) is a TBD62786A series BiCD silicon monolithic integrated circuit. Each output has an internal clamp diode that clamps the back electromotive force generated in driving inductive loads.
- 8-ch low active source type DMOS transistor array
- High output voltage is 50V (max, Ta = 25°C), large output current is -500mA (max,per 1 ch, Ta=25°C)
- Input voltage range from -30 to -2.8V (IOUT = -100mA or more, VDS=2V, output on, Ta = -40 to 85°C)
- Clamp diode forward current is 400mA (max, Ta = -40 to 85°C)
- Output leakage current is 1.0μA (max, VIN = 0V, VOUT = VGND = -50V, Ta = 85°C)
- Current consumption is 5mA (max, VIN = -2.8V, VGND = -50V, output OPEN, per 1 ch)
- Clamp diode leakage current is 1μA (max, VR = 50V, Ta = 85°C)
- Turn on delay is 0.2μs (typ, VOUT = VGND = -50V, RL = 160 ohm, CL = 15pF)
- Turn off delay is 2.0μs (typ, VOUT = VGND = -50V, RL = 160 ohm, CL = 15pF)
- SSOP18-P-225-0.65 package, operating temperature range from -40 to 85°C
Notes
Please be careful about thermal conditions during use.
