| Manufacturer | TRACO POWER |
|---|---|
| Manufacturer Part No | TEN 40-2431Copy |
| Manufacturer Standard Lead Time | 22 weeks |
| Order Code | 1242627 |
| Product Range | TEN 40 Series |
| Your Part Number | |
| Technical Datasheet |
5 more incoming. You can reserve stock now
| Quantity | Price (Incl GST) |
|---|---|
| 1+ | $212.750 ($244.6625) |
| 5+ | $209.040 ($240.396) |
| 10+ | $172.050 ($197.8575) |
| 50+ | $168.620 ($193.913) |
Product Information
| Manufacturer | TRACO POWER |
|---|---|
| Manufacturer Part No | TEN 40-2431Copy |
| Manufacturer Standard Lead Time | 22 weeks |
| Order Code | 1242627 |
| Product Range | TEN 40 Series |
| Technical Datasheet | |
| Power Supply Applications | ITE |
| DC / DC Converter Type | DIP |
| Input Ratio | 2:1 |
| Output Power Max | 40W |
| No. of Outputs | 3 Output |
| Output Voltage - Output 1 | 5V |
| Output Current - Output 1 | 6A |
| Output Voltage - Output 2 | 12V |
| Output Current - Output 2 | 400mA |
| Output Regulation | - |
| Isolation Voltage | 1.5kV |
| Input Voltage DC Nom | 24V |
| DC / DC Converter Output Type | Fixed |
| Width | 50.8mm |
| Height | 10.2mm |
| Depth | 50.8mm |
| Input Voltage DC Min | 18V |
| Input Voltage DC Max | 36V |
| Product Range | TEN 40 Series |
| SVHC | Lead (04-Feb-2026) |
Product Overview

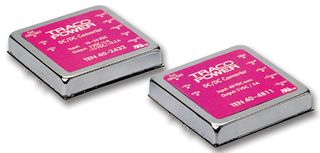

The TEN 40-2431 is a 3-output 40W board-mount isolated high performance DC/DC Converter with wide 2:1 input voltage ranges in a compact low profile case with industry-standard footprint. It offers 18 to 36VDC input voltage range and 5VDC at 6A/12 and -12VDC at 0.4A output voltage. A very high efficiency allows an operating temperature range of -40 to 75°C. Built-in filters for both input and output minimize the need for external filtering. Further standard features include remote ON/OFF, output voltage trimming, overvoltage protection and under-voltage lockout and short-circuit protection. This device is suitable for use in many applications where isolated, tightly regulated voltages are required and space is limited on the PCB.
- Overtemperature protection
- Undervoltage lock-out
- Shielded metal case with insulated base plate
- 87% Typical efficiency
- 24VDC Nominal input voltage
Applications
Power Management, Industrial, Communications & Networking
Technical Specifications
| Power Supply Applications | ITE |
|---|---|
| Input Ratio | 2:1 |
| No. of Outputs | 3 Output |
| Output Current - Output 1 | 6A |
| Output Current - Output 2 | 400mA |
| Isolation Voltage | 1.5kV |
| DC / DC Converter Output Type | Fixed |
| Height | 10.2mm |
| Input Voltage DC Min | 18V |
| Product Range | TEN 40 Series |
| DC / DC Converter Type | DIP |
|---|---|
| Output Power Max | 40W |
| Output Voltage - Output 1 | 5V |
| Output Voltage - Output 2 | 12V |
| Output Regulation | - |
| Input Voltage DC Nom | 24V |
| Width | 50.8mm |
| Depth | 50.8mm |
| Input Voltage DC Max | 36V |
| SVHC | Lead (04-Feb-2026) |
Associated Products
2 Products Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Taiwan Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85044095 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | Lead (04-Feb-2026) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .056 |
